Siemens brand
6SE70 book type frequency converter: When the password cannot be opened, simply change the data in P358 and P359 to the same.
ABB brand
ACS600 frequency converter: Enter the password "23032" in parameter 16.03, and set parameter 102.01 to false to enter and set all main control board parameters.
Mitsubishi brand
740 series frequency converters: When the password cannot be opened, simply unplug the panel and plug it in.
Emerson brand
TD3000: When the password cannot be opened, enter the password 8888.
Yaskawa brand
Yaskawa G5 frequency converter: The password is displayed in A1-04. Adjust to this parameter, and then press and hold the MENU and RESET keys simultaneously for 10 seconds to see the password. Adjust to A1-05 and enter the password to modify the parameters.
Yaskawa G7 frequency converter: When displaying A1-04, press RESET while pressing MENU to display the password settings for A1-05, and then input this password into A1-04.
European brands
590 frequency converter: The universal password is 131122.

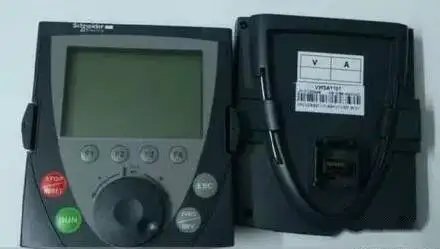

Schneider brand
The password that has been set can be found in the SUP menu by entering COD and entering 6969.
Fuji brand
VG5 frequency converter: The password is the last parameter number 200, set to 0 and the data cannot be changed, and set to 1 and the data can be changed.
VG7 frequency converter: General password FFFF, which means you need to input FFFF to enter when powered on.
Hitachi brand
J300 frequency converter: To rename a multi-functional terminal to the "initialization" function (parameter C0-C7), then short circuit this terminal to the common terminal "CM1" (or P24), and then turn off the frequency converter before powering it on. If you want to change terminal "7" to the "initialization" function, set the C6 parameter to "7".
Panasonic brand
Panasonic VFO frequency converter: Press MODE three times
Press ▲ until 999 is displayed, and then press ▲ and ▼ again to reset the password.
LS brand
LG-iS5 frequency converter: Set FU2-94 to 240 to see the MAK parameters.
Delta brand
B-series frequency converter: The super password is 57522.
H-series frequency converter: The super password is 33582.
S1 series frequency converter: The super password is 575222.
A series frequency converter: Press the MODE and RESET keys together to display P256. Press the ENTER key to modify this parameter, changing 00 to 01. Press the ENTER key to exit and modify all parameters.
INVETON brand
CHV, CHE, CHF series frequency converters: The super password is 50112.
Sanken brand
Set the password and set the parameter CD900 to 36521.
Huichuan brand
The super password is 18181.
Dongyuan brand
M3 series frequency converter: Changing parameter P00 to 05 shows 65 parameters, changing P00 to 08 for 2-wire initialization, and changing P00 to 03 parameters is sufficient.
Ourui (formerly known as Huifeng) brand
The super password is: 1888.
Popular brand
PI2000 frequency converter: (1) Set C01 to 222 and enter P14; (2) Set P14 to refresh the CPU with 3 pairs, and PI2000 will be displayed. Set C01 to 222 and enter P14 parameter setting. P14 will be set to 2, P01 will be set to model G and F, P02 will be set to inverter voltage of 380V, P03 will be set to inverter rated current, P04 will be set to voltage display, and P05 will be set to current display.
Xilin brand
The super password is 6860.
Jiaxin brand
TX-4T040C frequency converter: F00 refers to the user password setting, and the factory setting is 8888. If the password of the machine has been modified, the method to unlock the password is to power on the frequency converter and short circuit the JP4 solder joint to restore the factory password. JP4 is located above the motherboard CPU, with empty terminals and no connectors, only two pads. After short circuiting it, enter the parameter settings, confirm the factory password of 8888, and then modify the parameters after F00.
How to encrypt your frequency converter parameters
If you want to protect your frequency converter parameters from illegal reading or modification, can you add a software lock to the parameters? (Evade everyone, I'm about to start Amway!)
The answer is: Of course! Sinamics frequency converter comes with encryption function - proprietary technology protection function. Not only G130/150, but also G120, as well as other Siemens frequency converter products that can be debugged using Starter, you can also draw inspiration from them.
Below we will introduce the specific usage:
1： How to activate the proprietary technology protection function?
Step 1. Create a list of special cases that do not fall within the scope of proprietary technology protection
Through a special list, machine manufacturers can set some setting parameters that are not within the scope of proprietary technology protection, that is, end users can still access these parameters when the protection is activated. The special list can be defined through the parameters p7763 and p7764 in the expert parameter table. P7763 is used to determine the number of parameters included in the special list (non encrypted parameters). P7764 is used to determine the parameter number.
Creation steps:
1. By uploading（
））Save the frequency converter settings on PC or PG and enter offline mode（
）
2. Set p7763 in the project to the desired value on the PC. Save the project.
3. Enter online mode and load the project into the frequency converter（
）
4. Then continue to set other exception parameters in p7764.
Factory default settings for special lists:
P7763=1 (containing only one parameter)
P7764 [0]=7766 (exception parameter)
Attention: Be extremely careful when creating a special list! After you remove p7766 from the special list, you can no longer enter a password and cancel proprietary technology protection. The only way to access this parameter in the frequency converter again is to restore the factory settings of the frequency converter
Step 2, activate proprietary technology protection function in the Starter project
1. Click the left mouse button and select the frequency converter in the STARTER project
2. Click the right mouse button to open the right-click menu and select 'Drive Unit Know now Protection'.
3. Click to activate proprietary technology protection "Activate"
4. Click on 'Specify' in the dialog box and enter the password,
5. Click "OK" to confirm.
The encrypted parameter list using proprietary technology protection function is purple: unauthorized reading and writing of all illegal parameters will not be implemented. For BOP-2, IOP, BOP20, AOP30 and other panel equipment, protection is equally effective
2： How to cancel the proprietary technology protection function?
1. In the STARTER project, select the frequency converter and select "DriveUnitKnow now" from the right-click menu
Protection.
2. Select deactivate.
3. Select 'Temporarily' or 'Permanently' to remove proprietary technology protection.
4. Enter the password and click OK to close the dialog box.
3： How to modify the proprietary technology protection function
1. The frequency converter must be in online mode.
2. Proprietary technology protection must be activated.
3. In the STARTER project, select the frequency converter and select "Drive Unit Know now Protection/Change Password..." from the right-click menu
5. Open the 'Change Password' window.
6. Enter the old password and the new password.
7. Choose whether to execute 'Copy RAM to ROM', which is checked by default.
8. Click OK to exit the window.
9. The new password will take effect.
For PLC program encryption, it is generally used for dishonest customers, but you may not know the customer's integrity beforehand. Therefore, it is recommended to encrypt every program well. For example, if you have a one-year maintenance period, you can choose 1 year and 3 months, which is slightly longer than the maintenance period.
Encryption programs cannot be completely affected by time
For example, if you use date judgment, it may cause date recognition errors due to a prolonged power outage of the PLC. It is recommended to judge the time and record the time every 4 hours. If the time is greater than that time in the next judgment, it is considered an error, and if it is less than that time, it is considered an error. The time will be automatically refreshed or a time tag alarm will be issued. The secret program should not be too rigid
Don't limit the time. As soon as the time comes, you can close the program tightly, which may cause damage to on-site equipment or injury to on-site personnel, resulting in negative effects. You can choose to stop some parts that do not involve personal safety or equipment safety, and then raise an alarm. The alarm type can be that the next time it cannot be started, and the ones that have already been started will continue to run as usual.
The encryption program should be released appropriately
Don't wait until an emergency to go to the scene on your own, set your own trap. You can choose an empty DI point as the release point or perform a special combination operation on-site to release it, but it is best to use the upper computer authorization code.
Attention to authorization codes
Your authorization can be divided into multiple time tags. For example, if some users cannot pay all your fees as agreed, you can use the authorization to extend the operation period by 1 month, 3 months, or half a year, so that users are always subject to your constraints. Of course, you need to do it seamlessly or let the other party's main leader know.
The highest level of encryption - program bombing
The encryption program has been executed, and when encountering stubborn users who delay paying fees, they are no longer polite. The program bombing method is used to delete the main section of the program to avoid other interference. This method requires special PLC support, such as Siemens S7300 or above CPU. Alternatively, use program copying to fill up the space, or issue commands to the upper computer to directly delete the program.
In short, encryption is effective until the establishment of an honest Chinese country. It is best for the PLC to have hardware encryption to prevent Party A from uploading programs to personnel from other companies.
