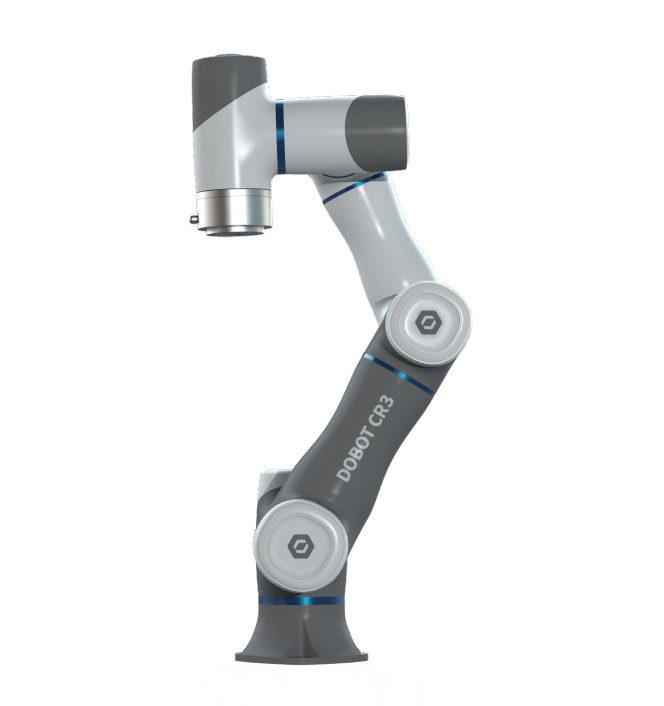

Hand Guided Learning Industrial Robot CR Cobots Load 3KG Flexible Deployment

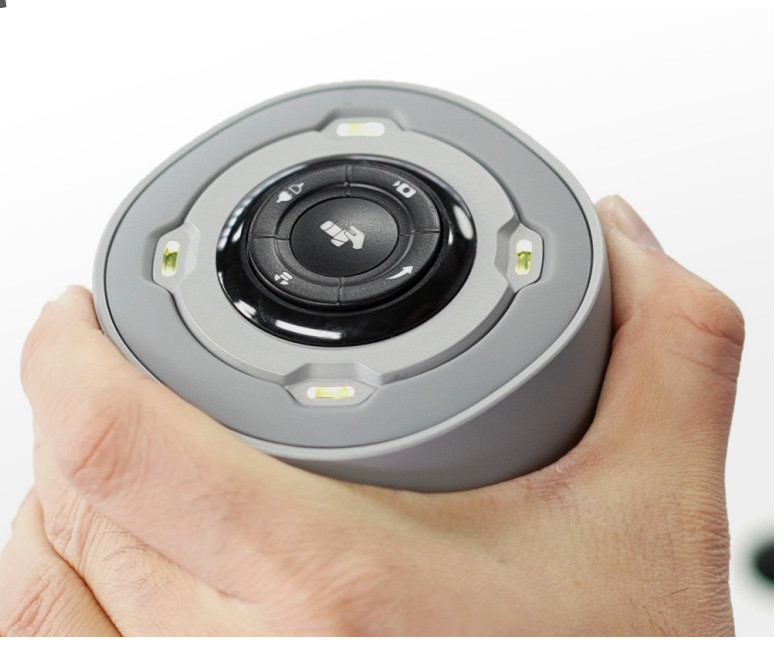

Drag-and-drop programming is a unique feature of collaborative robots, or cobots, that sets them apart from traditional industrial robots. This type of programming allows operators to teach cobots how to perform specific tasks by physically moving the robot arm through the desired sequence of movements.
Compared to traditional industrial robots, cobots with drag-and-drop programming have several advantages in factory settings. One key advantage is ease of use. Traditional industrial robots require extensive programming knowledge and specialized software to operate, which can be a barrier to entry for many operators. In contrast, drag-and-drop programming is intuitive and can be easily learned by operators with little to no programming experience.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| Model of control cabinet | |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
