Place of Origin:
CHINA
Brand Name:
YDobot
Certification:
CE UR
Model Number:
EWR-YJ3
Contact Us
video

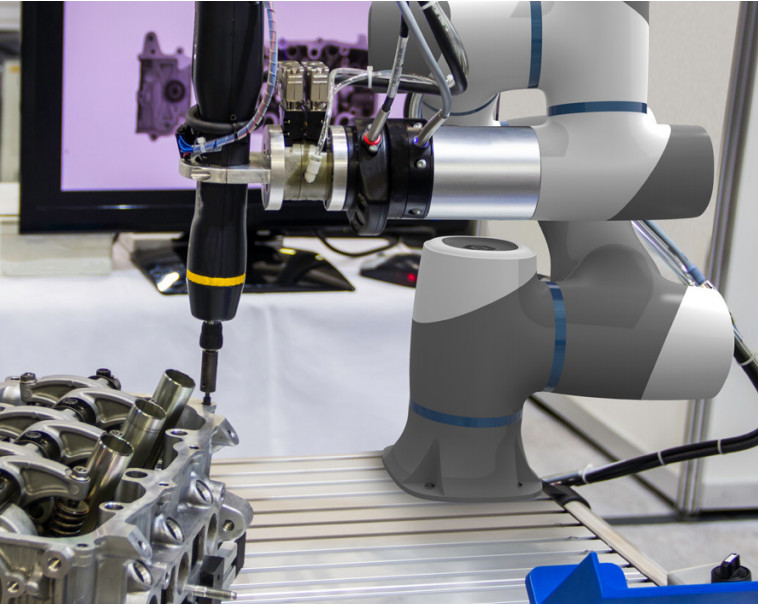

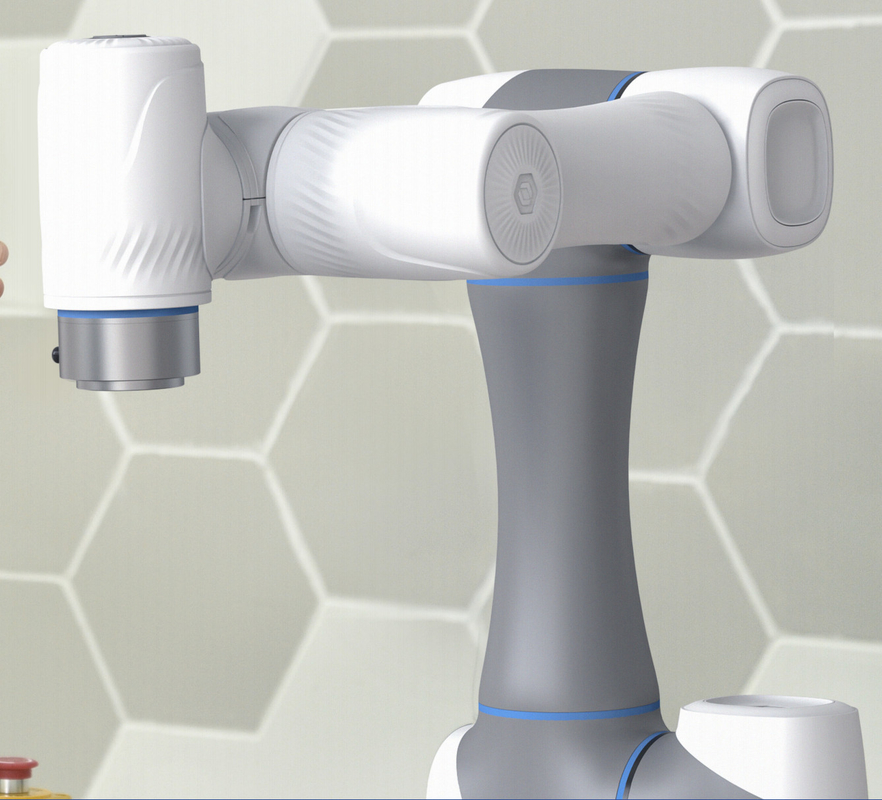

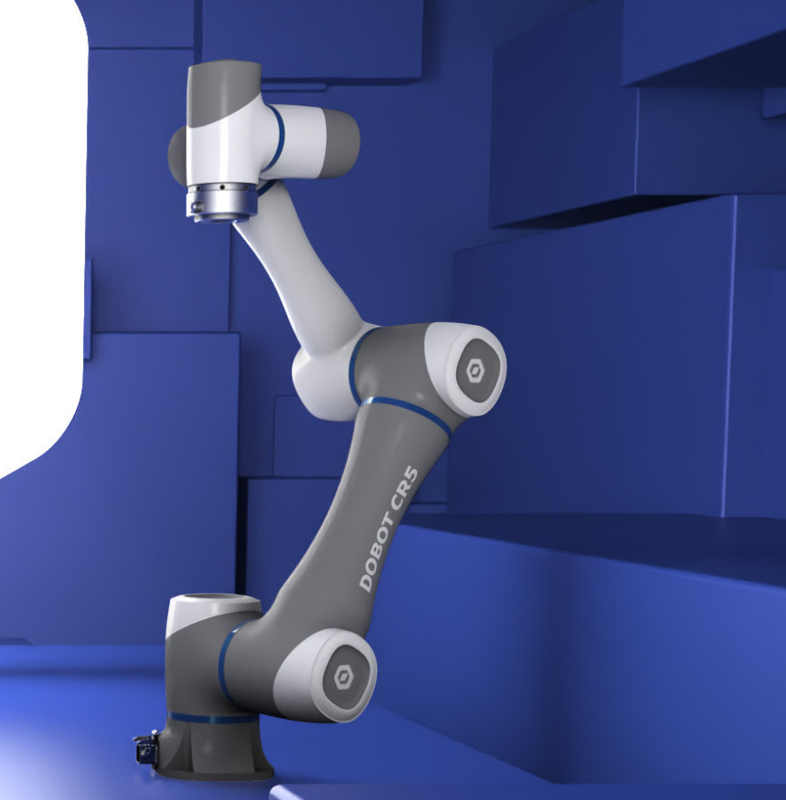

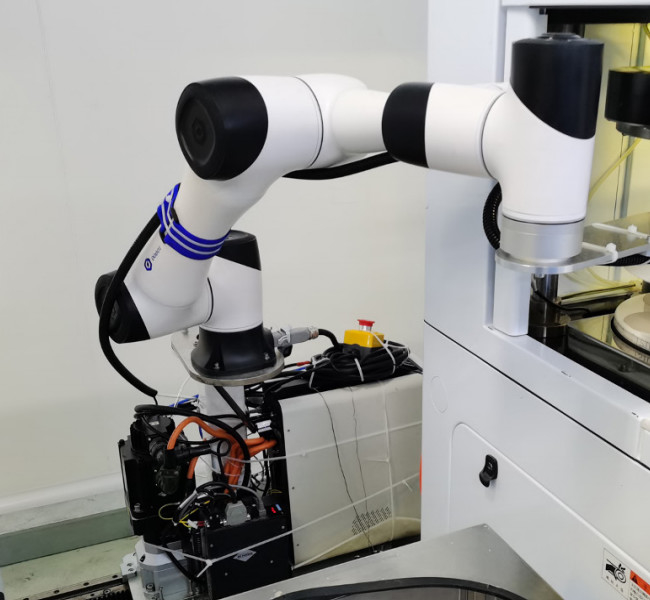

Handheld Teaching Pendant Industrial Robotic Arm APP Operation Load 5KG
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |
