Place of Origin:
china
Brand Name:
hans
Certification:
ul
Model Number:
E18
Contact Us
video

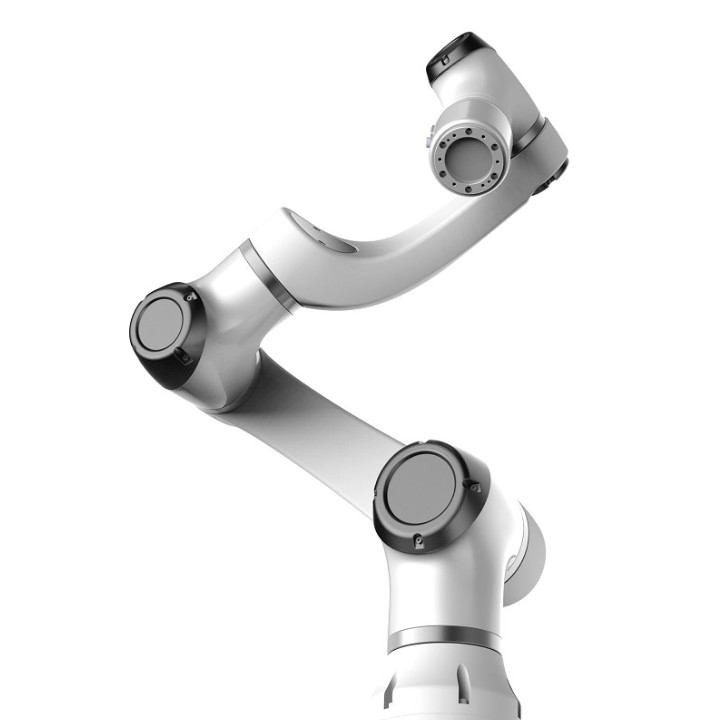

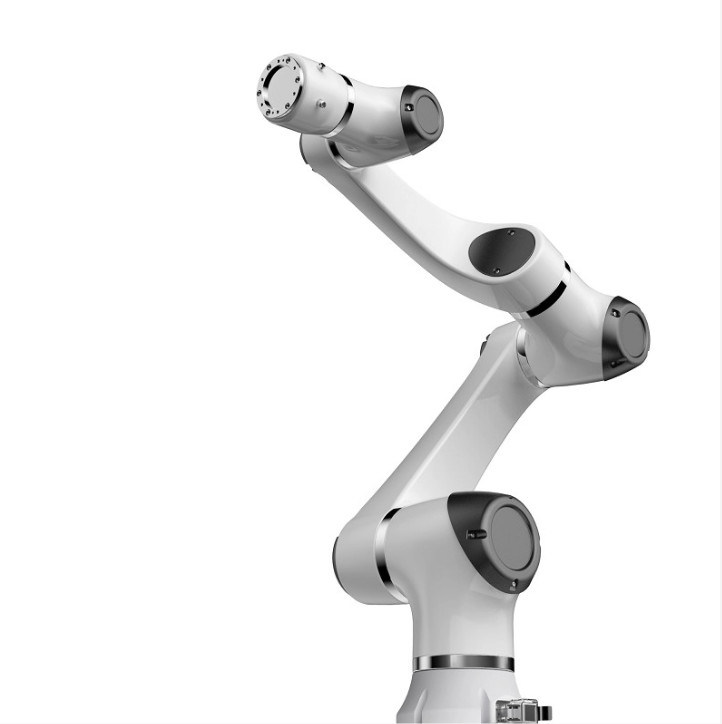

The combination of electric grippers and collaborative robots Payload 18kg
It is widely used in "automobile factory, food factory, drug factory, auto parts factory, clothing factory, chemical factory, etc.". The applications involved can include "handling, stacking, locking screws, loading and unloading, welding", etc.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| ITEM | VALUE |
| Applicable Industries | Food and beverage manufacturing/Automotive manufacturing/Healthcare manufacturing/Electronics manufacturing |
| Communication mode | TCP/IP Modbus |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Package Size | 1050*610*480mm |
| Gross Weight | 73kg |
| Technical service | Online support |
| Weight (KG) | 58kg |
| Axis | 6 axis |
| Payload | 18kg |
| Reach | 1100mm |
| Control cabinet size | 536*445*319mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.1mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 600W |
Transportation and Packaging
In addition to providing collaborative robots with diverse loads and arm extensions, we also provide conventional industrial robots and peripheral products, such as robot guides, robot protective clothing, robot grippers, and robot software. Please feel free to contact our sales hotline (WhatsApp) at: +8618601676399
