Place of Origin:
china
Brand Name:
dobot
Certification:
ul
Model Number:
cr5
Contact Us
video

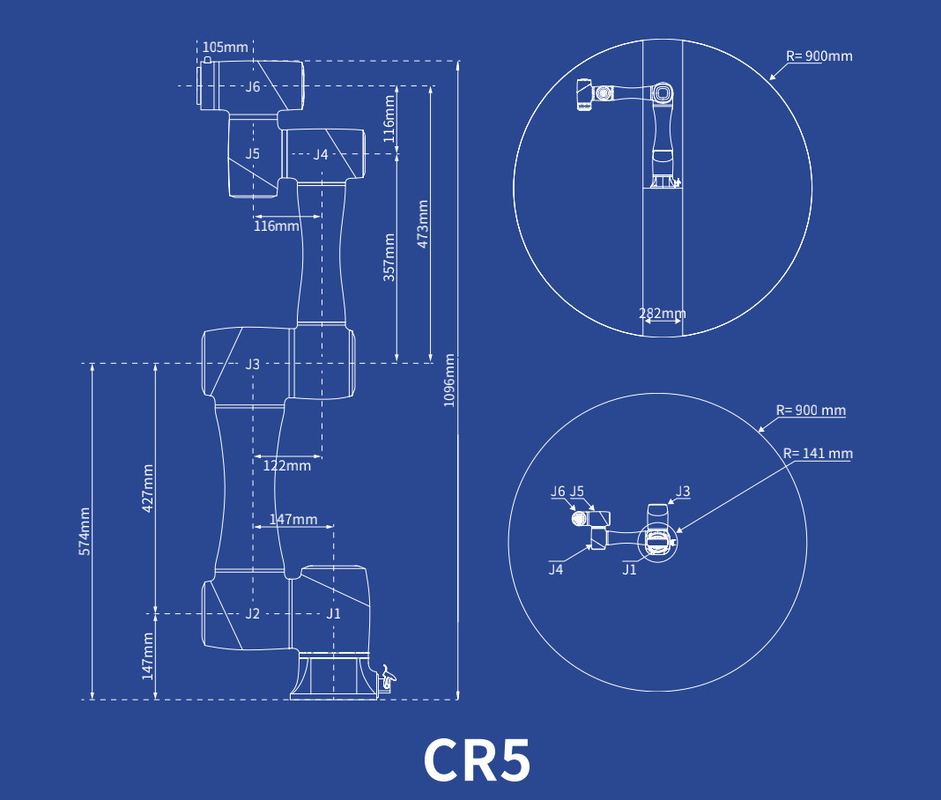

Reach 900mm For Programming Contest cobot in food production facilities
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Several well-known food production facilities have already adopted the use of cobots in their operations. One example is the Hershey Company, which implemented cobots for packaging chocolate bars. The cobots were equipped with specialized end-effectors to safely handle the delicate chocolate bars, reducing the risk of damage and waste.
Another example is Nestle, which used cobots for packaging pet food. The cobots were equipped with specialized end-effectors to handle the varied shapes and sizes of pet food products, ensuring efficient and accurate handling.
| ITEM | DETAIL |
| Control cabinet size | 360mm*160mm*402.4mm |
| Weight of control cabinet | 12kg |
| Number of control axes | 6 axis + external control axis |
| Input power | Single phase electricity110V/220AC.7.5A,50/60HZ |
| Output power | 48V,20A |
| Braking resistance | 17W,10Ω,four |
| Communication interface | EtherCAT(For external expansion shaft)Ethernet |
| IO interface | 16 channel digital output |
| 16 channel digital input / output(multiplexing) | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 2 analog outputs (0v-10v voltage) 4ma-12ma current | |
| 1 channel ABZ incremental encoder input | |
| Teaching method | Handheld teaching pendant / APP |
| programing language | script |
| BLOCKLY | |
| Installation mode | Floor type |
| Environment | Temperature :0℃~45℃/Humidity:≤95%,No frost |
| Degree of protection | IP20 |
| Cooling mode | Forced air cooling |
| Safety function | Emergency stop function, reserved external safety interface (can be controlled through IO interface) |
| Indicator Status | During normal power on, the red indicator light is always on; When the power is off, the indicator light goes out |
| Maintain | Diagnostic software tools |
| Power off zero position protection function | |
| Reserved remote service function |
