Place of Origin:
china
Brand Name:
CHHANS
Certification:
ce cr
Model Number:
EWR-DZ15
Contact Us
video

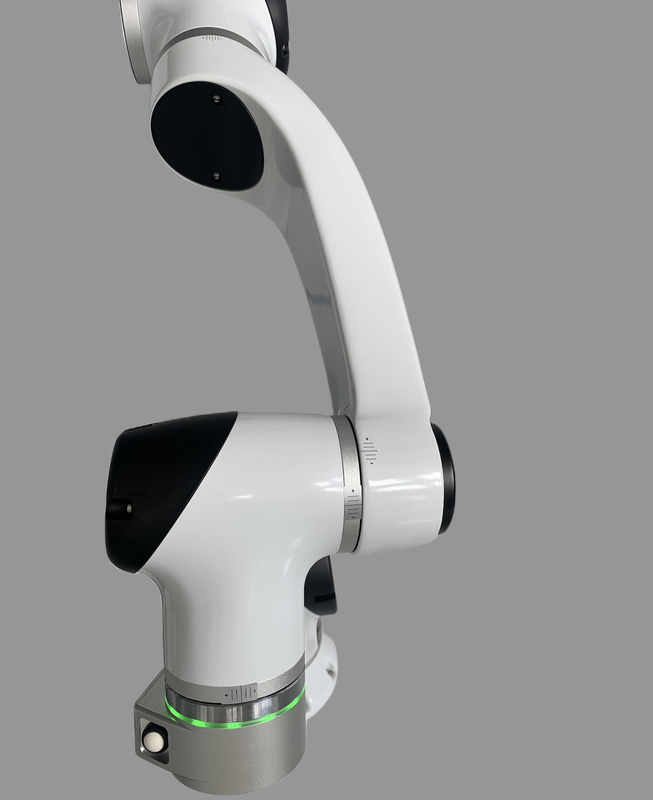

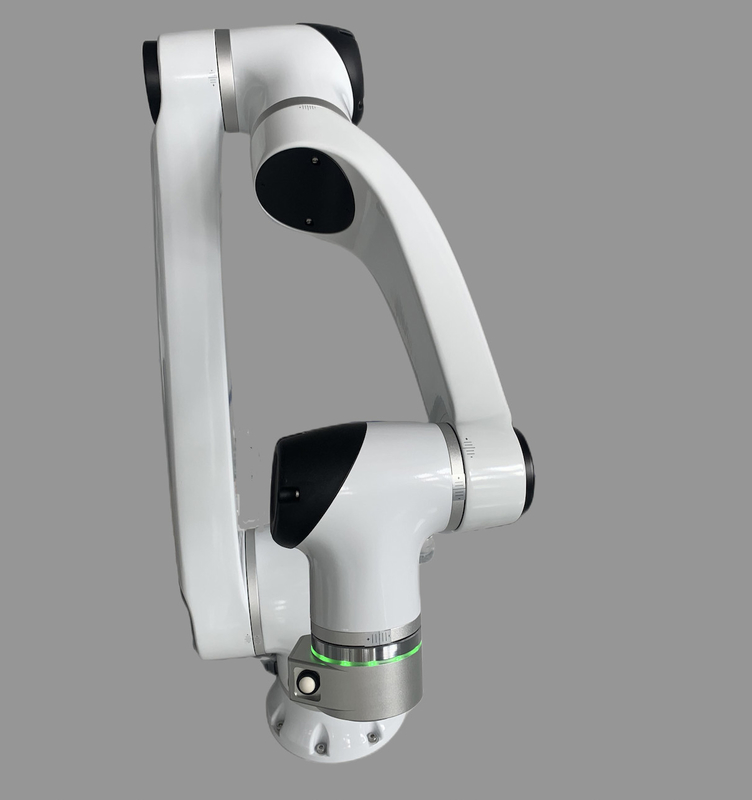

High-energy sources robot with 1300mm range For Semiconductor Factory
Many semiconductor factories around the world are adopting collaborative robots to improve their manufacturing processes. Here are a few examples:
Because of its convenient teaching method and light weight, this robot can be widely used in various semiconductor factories, such as Apple, Huawei, Samsung, etc. Low price is also one of its advantages, which can easily replace the top robot brands such as abb and kuka.
Know more about products
Company Product List
400g load cobot arm
3kg load cobot arm
5kg load cobot arm
7kg load cobot arm
10kg load cobot arm
15kg load cobot arm
| ITEM | VALUE |
| Applicable vision system |
HIKVISON/COGNEX/KEYENCE/BASLER/Micromatch Mech-Mind/UBisense/Seizet
|
| After Warranty Service | Video technical support, Online support |
| Local Service Location | None |
| Showroom Location | China |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Communication mode | TCP/IP Modbus |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Package Size | 1050*610*480mm |
| Gross Weight | 70kg |
| Warranty | 1 Year |
| Technical service | Online support |
| Weight (KG) | 60kg |
| Brand | CHHANS |
| Axis | 6 axis |
| Payload | 15kg |
| Reach | 1300mm |
| Control cabinet size | 536X445X319mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.1mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 600W |
We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399
Transportation and Packaging
In addition to providing collaborative robots with diverse loads and arm extensions, we also provide conventional industrial robots and peripheral products, such as robot guides, robot protective clothing, robot grippers, and robot software. Please feel free to contact our sales hotline (WhatsApp) at: +8618601676399
Company Technical Support (Remote Video Guidance)
