Place of Origin:
china
Brand Name:
EW
Certification:
ce cr
Model Number:
EWR-JK3
Contact Us
video

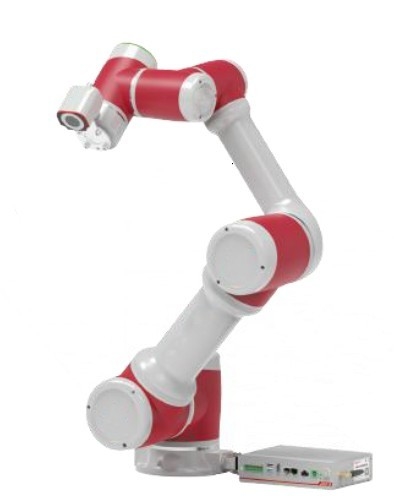

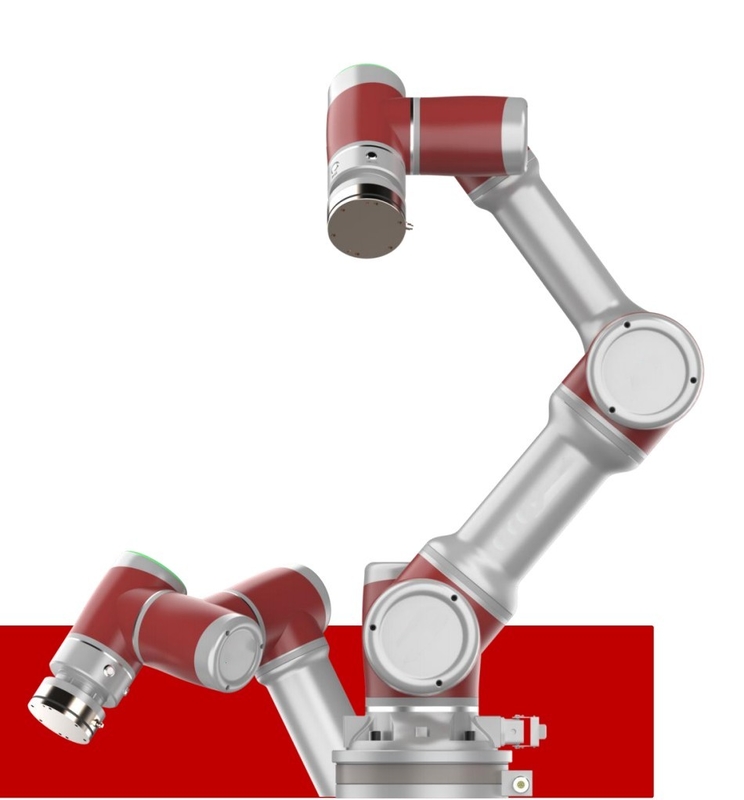

Robot Arm With Collision protection Reach 1000mm payload 3kg 624mm

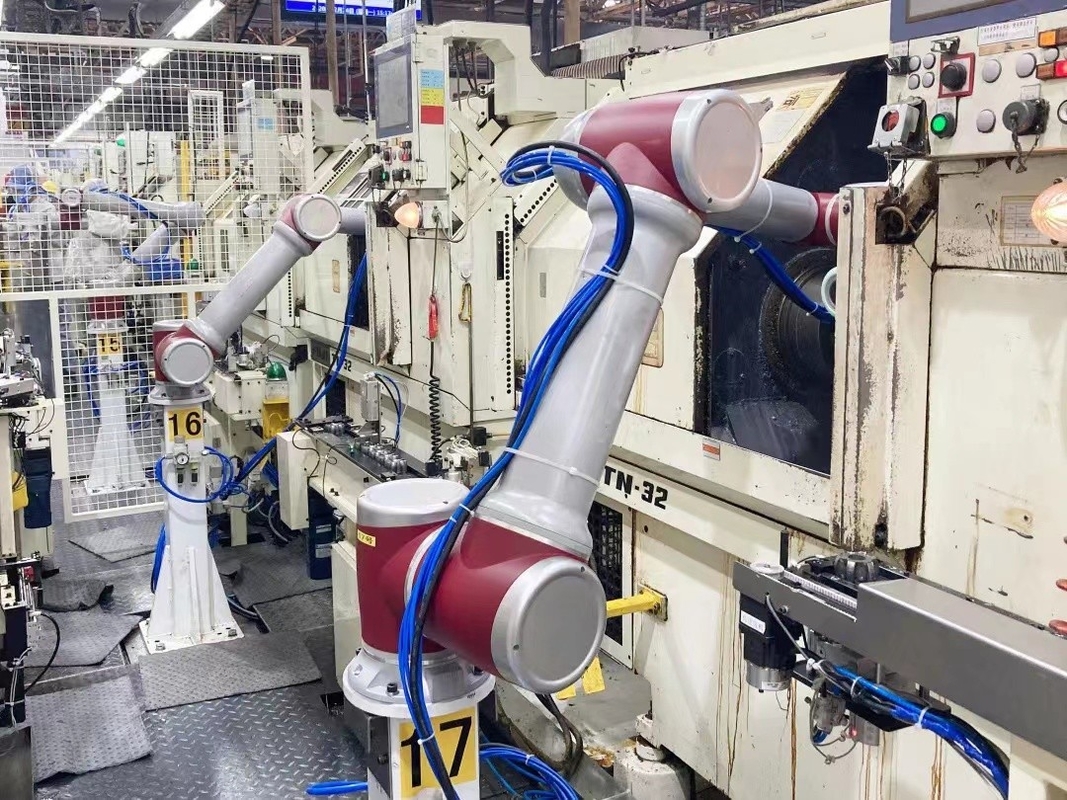

The loading and unloading process of machine tools is an application that is very skilled in using robots. However, with the difficulty of chip production, many robot manufacturers cannot deliver successfully. Both abb and kuka robots will have a delivery date of more than 50 weeks.
Product Supply
Robot softwware
Robot protective suit
Industrial Robot
..........
If you need any software and hardware related to automation and robotics, please feel free to contact us
| ITEM | VALUE |
| Applicable vision system | HIKVISON/COGNEX/KEYENCE/BASLER/Micromatch |
| Mech-Mind/UBisense/Seizet | |
| Communication mode | TCP/IP Modbus |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Gross Weight | 26kg |
| Technical service | Online support |
| Weight of robot and cable (KG) | 12kg |
| Axis | 6 axis |
| Payload | 3kg |
| Reach | 626mm |
| Control cabinet size | 410*307*235mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.02mm |
| IP protection | IP44 |
| Temperature range | 0~50° |
| Typical power consumption | 150W |
We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399
