Cooperation cobot programmed to perform repetitive and hazardous tasks
Some examples of cobot applications in electronics assembly include:
Pick-and-place operations: Cobots can be programmed to pick and place electronic components on a circuit board, which can help improve accuracy and speed up the assembly process.
Soldering: Cobots can be equipped with soldering tools and programmed to perform precise soldering operations on electronic components.
Know more about our Cobot
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
Robotic Arm Gripper
Laser Welding Robot System
Robot Screwdriver
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Warranty | 1 Year |
| Weight (KG) | 25kg |
| Weight of control cabinet | 12kg |

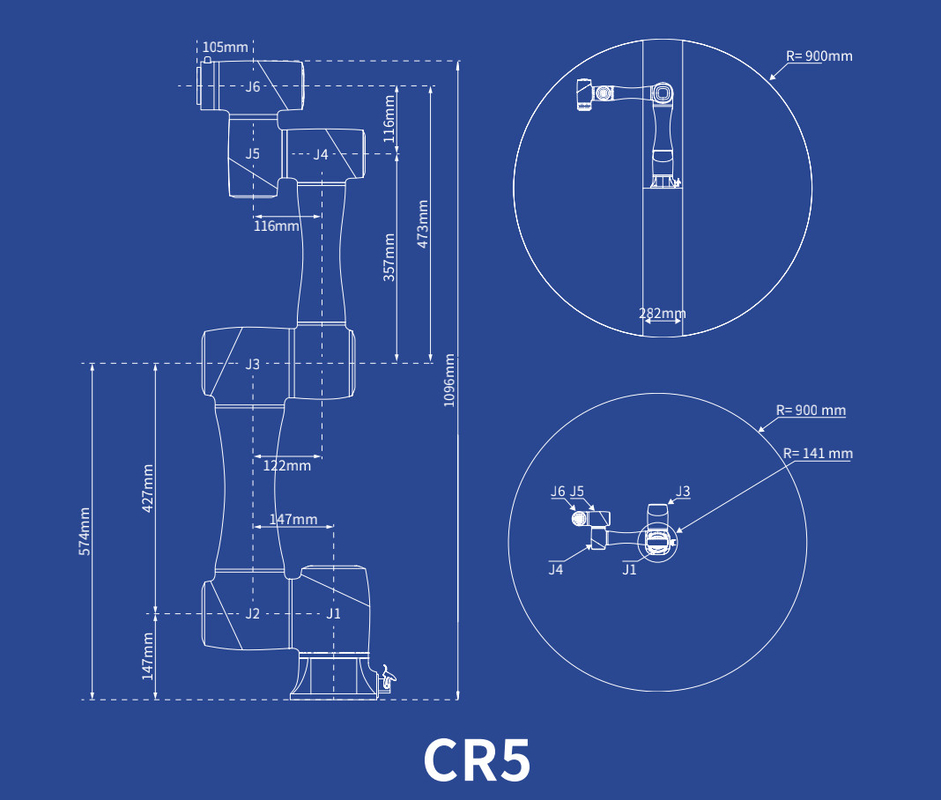

| Axis | 6 axis |
| Payload | 5kg |
| Reach | 900mm |
| Rated voltage | DC48V |
| Maximum operating speed | 3m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 150W |
Customer pain points:
The efficiency of manual feeding is low, and it is easy to cause strain for a long time.
The job is monotonous and recruitment is difficult.
Solution:
Semi automatic food and daily chemical packing box stacking is mainly composed of CR series robot, lifting mechanism and a set of feeding conveyor belt. The end of the robot is equipped with non-standard suction cups, and the base is equipped with a lifting mechanism, which is matched with the feeding conveyor belt to achieve the orderly stacking of packaging boxes. In this case, through CR robot, the packing boxes from the fully automatic production line are absorbed and stacked orderly, and the lifting mechanism is equipped to increase the floor height, which is efficient, fast and improves the production capacity.
Transportation and Packaging
