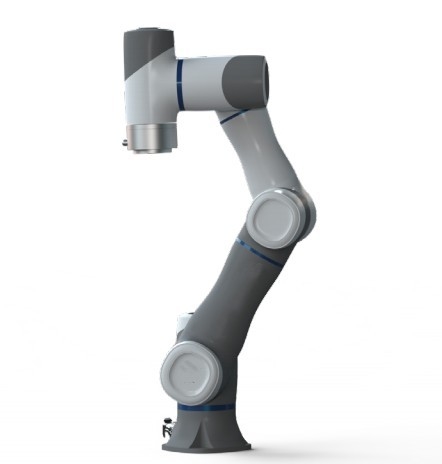

Assembly robot easy to programme with 3kg payload can working alongside human workers
In electronics assembly, cobots can perform tasks such as pick-and-place operations, soldering, and assembly, which can help improve efficiency and productivity while reducing costs and the risk of human error. Additionally, cobots can be programmed to perform repetitive and hazardous tasks, freeing up human workers to focus on more complex and strategic tasks.
Know more aout our products
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Technical service | Online support |
| Weight (KG) | 16.5kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 3kg |

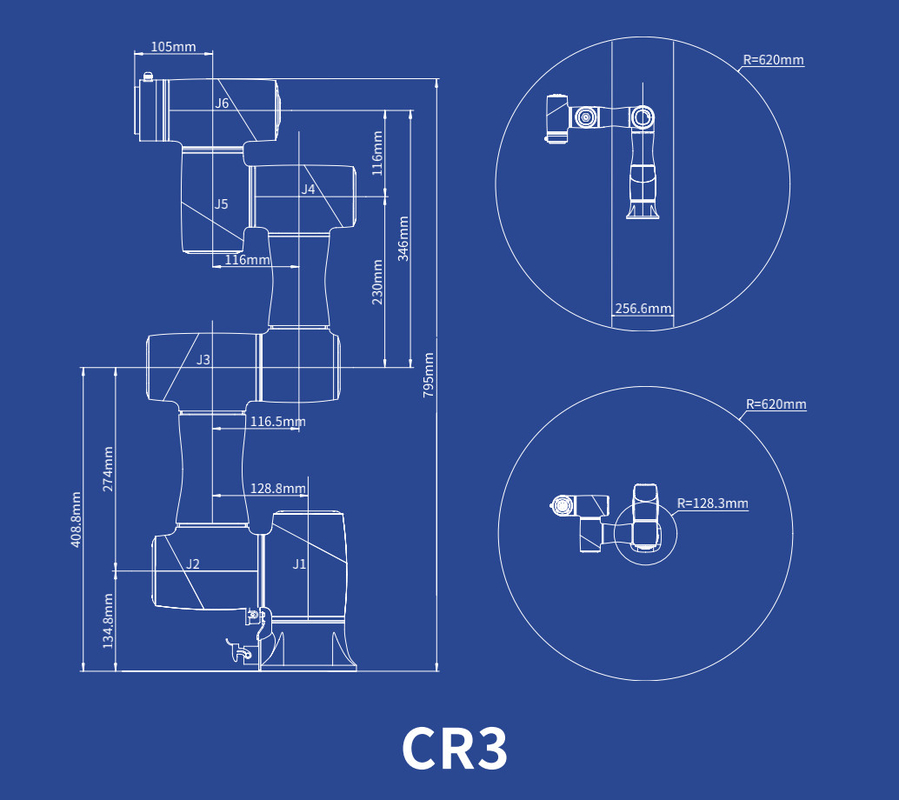

| Reach | 620mm |
| Rated voltage | DC48V |
| Maximum operating speed | 4m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 120W |
Customer pain points:
Manual detection is inefficient and cannot be operated for a long time.
Solution:
The nucleic acid automatic liquid mixing/transferring machine adopts a CR3 cooperative robot, which can automatically complete the operations of feeding, capping opening, liquid mixing, liquid transferring, capping closing, blanking, etc. The accuracy can be controlled to 0.002ml, and the four mixing can be realized. This scheme can meet the production needs of liquid mixing and liquid transfer in the medical field, save manpower, archive and query data, and be accurate and controllable.
Customer value:
24-hour operation improves the detection efficiency.
High accuracy to avoid human error.
Product advantages:
CR series lightweight fuselage takes up less space and can be flexibly operated in narrow space.
