Place of Origin:
china
Brand Name:
CHHANS
Certification:
ce cr
Model Number:
EWR-DZE15
Contact Us
video

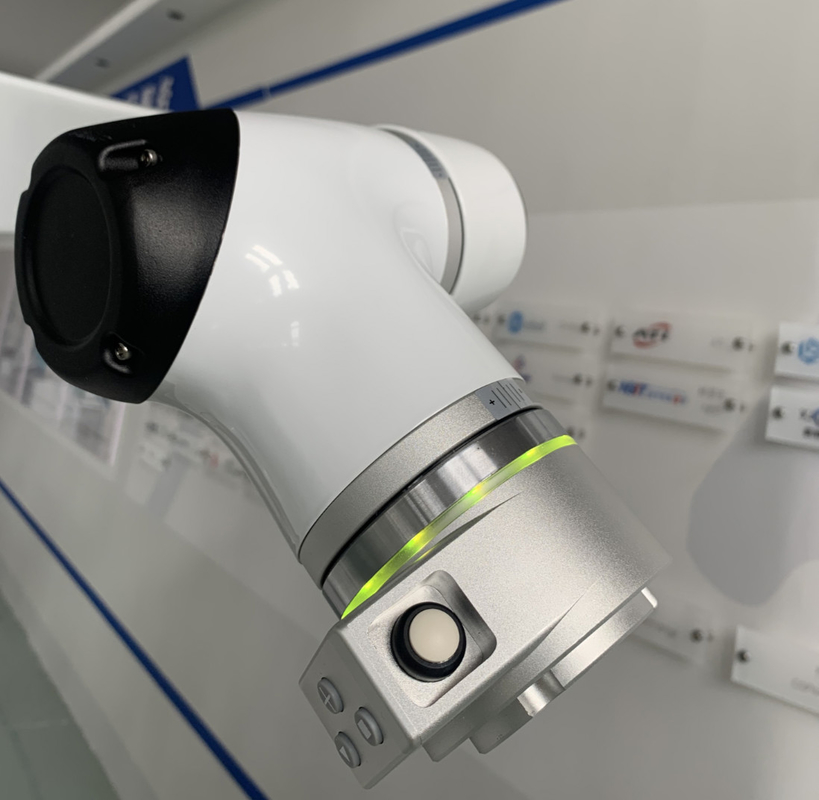

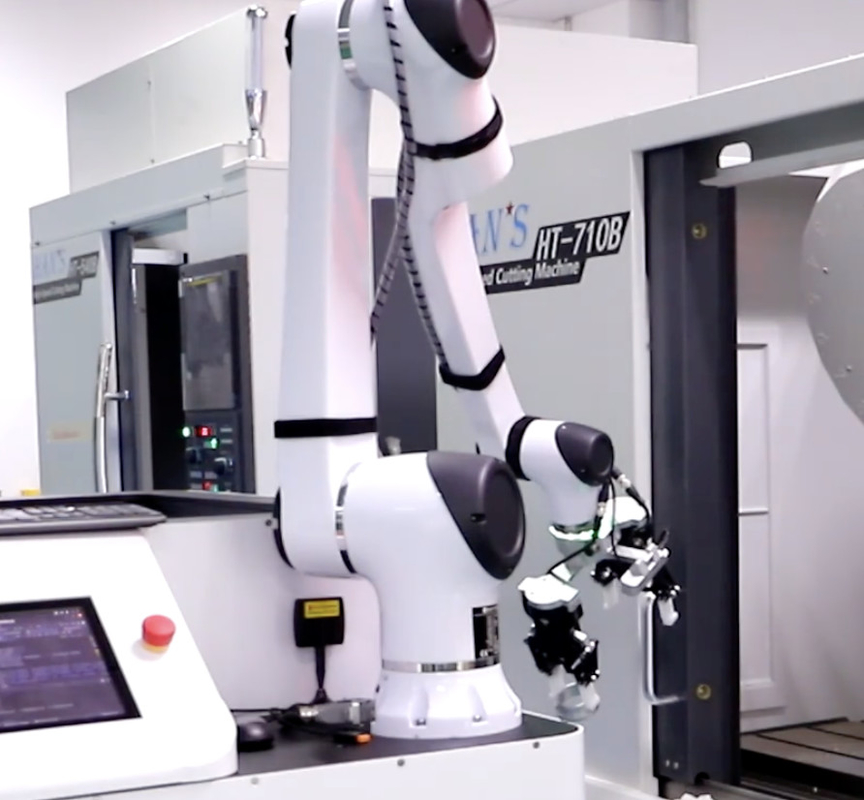

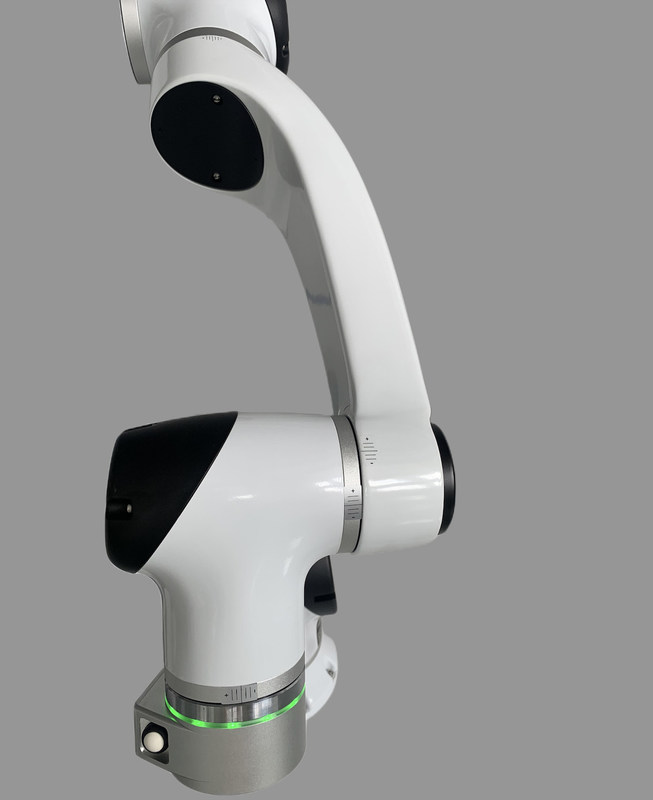

Cognex Vision Robotic Assembly Systems Cooperative cobot Arm 1300mm Reach
Material handling: Cobots can be programmed to transport materials and products within a production line or warehouse, improving efficiency and reducing the risk of injury for human workers.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
ABB Robot
Kuka Robot
Yaskawa Robot
Fanuc Robot
| ITEM | VALUE |
| Applicable vision system | HIKVISONCOGNEXKEYENCEBASLERMicromatchWELINKIRTU |
| Applicable Industries | Food and beverage manufacturing/Automotive manufacturing/Healthcare manufacturing/Electronics manufacturing |
| Communication mode | TCP/IP Modbus |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Package Size | 1050*610*480mm |
| Gross Weight | 70kg |
| Weight (KG) | 60kg |
| Axis | 6 axis |
| Payload | 15kg |
| Reach | 1300mm |
| Control cabinet size | 536*445*319mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.1mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 600W |
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
Our logistics and packaging methods
