Place of Origin:
china
Brand Name:
CHHANS
Certification:
ce cr
Model Number:
EWR-DZE18
Contact Us
video

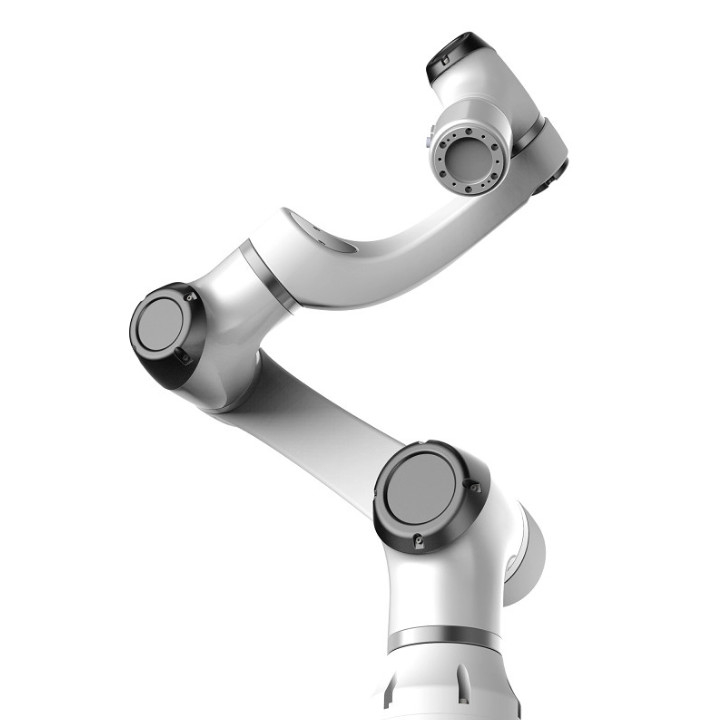

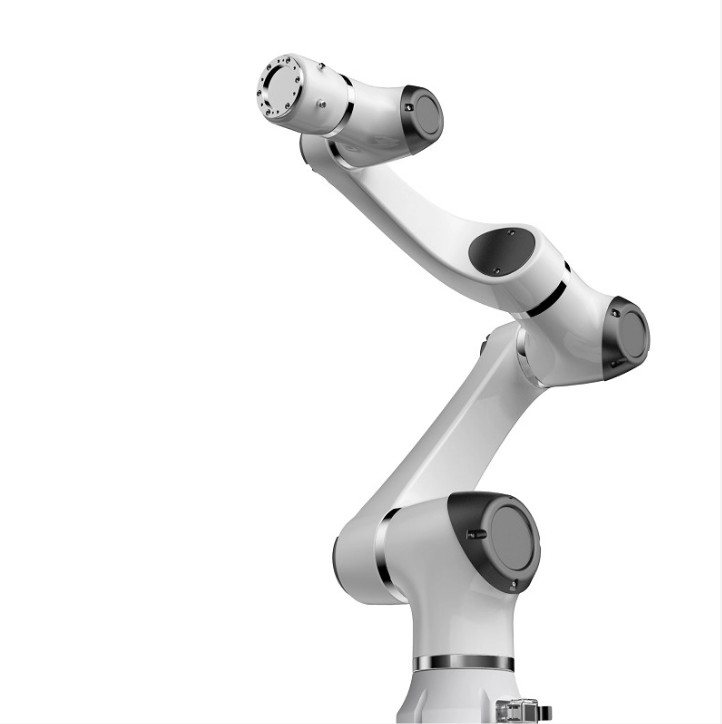

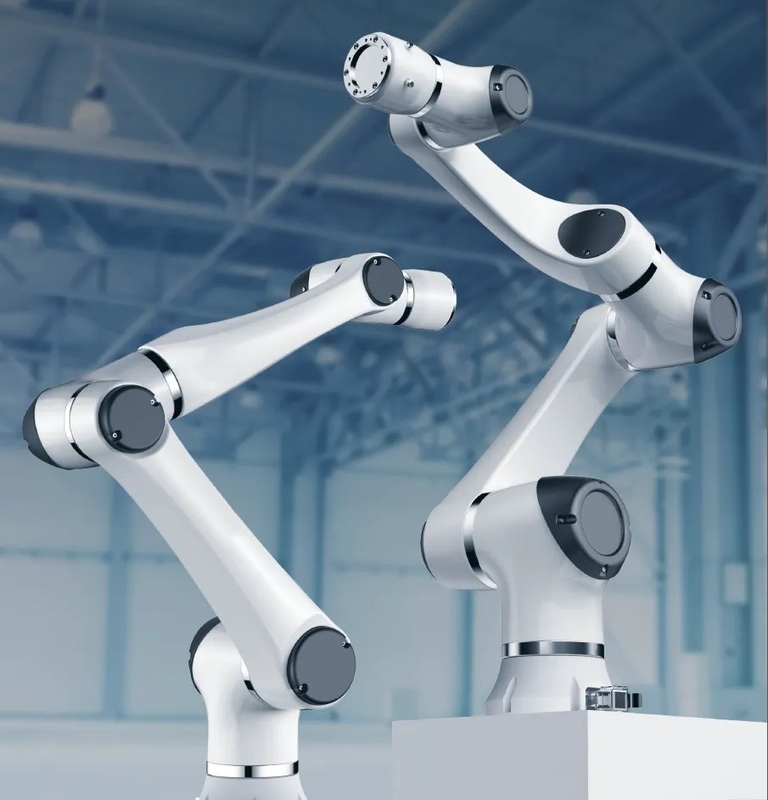

Profinet and profibus communication method robot arm with arm span of 1100mm
Collaborative robots, also known as cobots, are versatile machines designed to work alongside humans in a variety of applications. Some common applications of cobots include:
Assembly: Cobots can be used to assemble products in manufacturing environments, working alongside human workers to perform tasks such as screwing, bolting, or gluing.
Material handling: Cobots can be programmed to transport materials and products within a production line or warehouse, improving efficiency and reducing the risk of injury for human workers.
Quality control: Cobots can be used to inspect products for defects or damage, ensuring high-quality standards are met before the product is shipped.
Packaging and palletizing: Cobots can be programmed to pack products into boxes or onto pallets, improving the speed and accuracy of the packaging process.
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| ITEM | VALUE |
| Applicable Industries | Assembly/Material handling/Quality control/Packaging and palletizing |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IP Modbus |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Package Size | 1050*610*480mm |
| Gross Weight | 73kg |
| Warranty | 1 Year |
| Weight (KG) | 58kg |
| Axis | 6 axis |
| Payload | 18kg |
| Reach | 1100mm |
| Control cabinet size | 536*445*319mm |
| Maximum operating speed | 2m/s |
| Repeatability | ±0.1mm |
| IP protection | IP54 |
| Temperature range | 0~50° |
| Typical power consumption | 600W |
If you have any questions, please feel free to contact us at WhatsApp:+8618601676399 Email: carmen.lu@rely-robot.com
Our company can also configure robots with peripheral products, such as guides, turntables, protective clothing, and pipe packages
Our logistics and packaging methods
Send your inquiry directly to us
