A cooperative robot can be quickly to fill conveyor belt Replace assembly line workers
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Company Product List
400g load cobot
3kg load cobot
5kg load cobot
7kg load cobot
10kg load cobot
15kg load cobot
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| After Warranty Service | Video technical support, Online support |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Warranty | 1 Year |
| Weight (KG) | 25kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 5kg |

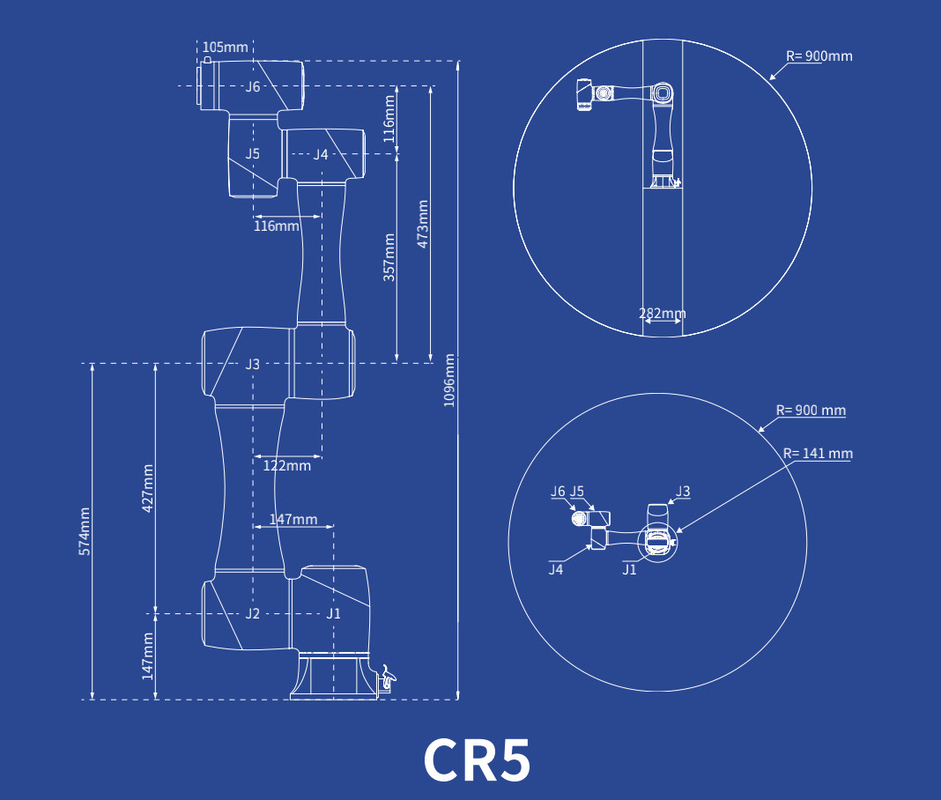

| Reach | 900mm |
| Rated voltage | DC48V |
| Maximum operating speed | 3m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 150W |
Customer pain points:
Loading and unloading work is single and repetitive, so it is difficult to recruit suitable workers.
The traditional automation import cycle is long and the cost is high, depending on the integrator.
Solution:

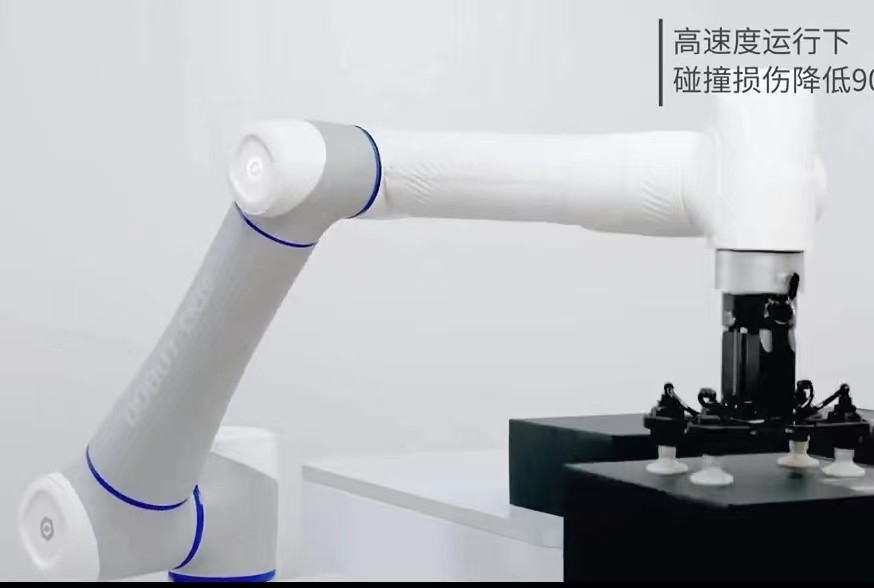

This case is composed of cr5, upper computer, conveyor belt, etc. The cr5 is equipped with suction cups to pick up parts from the tray and put them on the conveyor belt for transmission to the next process. The pallet adopts a combination of 3 * 8 * 2, and the robot disassembles in turn to complete the loading of all materials on the pallet. The staff can control through the upper computer to make the whole production process more coordinated and efficient.
Customer value:
It can save 2 people and improve the efficiency by 20%.
Less floor space, higher return on investment.
Product advantages:
The cr5 supports drag teaching, graphical editing and other methods. Ordinary people can quickly integrate it into various pipelines in 10 minutes, especially for some complex and changeable automation tasks.
