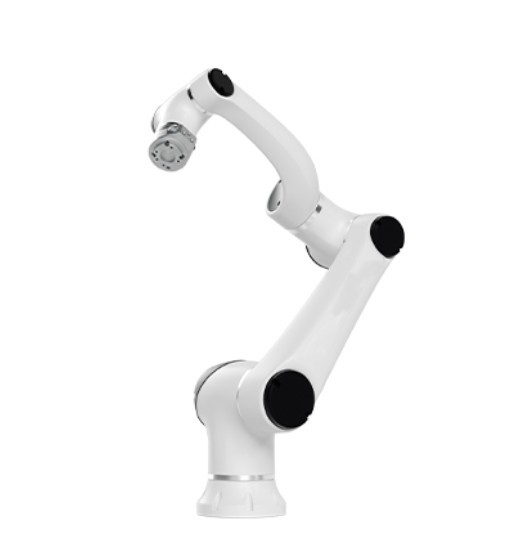

UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm

UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm

Cooperative Robot Cutting System

UBisense Vision System Robot Arm

Reach 1300mm Cooperative Robot Arm

Place of Origin:

china

Brand Name:

CHHANS

Certification:

ce cr

Model Number:

EWR-DZ15

Contact Us

Request A Quote
Product Details
IO Power:
24V 2A
Repeatability:
0.1mm
Axis:
6 Axis
Payload:
15kg
Reach:
1300mm
IP Rating:
IP54
Control Cabinet Size:
536*445*319
Key Words:
Cutting System
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton ➕ Foam inner packaging, outer frame fixed by wood frame
Supply Ability
500sets/month
Product Description

Reach 1300mm robot cooperative arm can be simply configured with UBisense vision system

The loading and unloading process of machine tools is an application that is very skilled in using robots. However, with the difficulty of chip production, many robot manufacturers cannot deliver successfully. Both abb and kuka robots will have a delivery date of more than 50 weeks.





Product Supply

Robot Accessories

Industrial Robot Software

Education Robot System

ABB Robot Arm

Kuka Robot Arm



Product characteristics



ITEM VALUE
Applicable vision system

HIKVISON/COGNEX/KEYENCE/BASLER/Micromatch

Mech-Mind/UBisense/Seizet



After Warranty Service Video technical support, Online support
Local Service Location None
Showroom Location China
Video outgoing-inspection Provided
Machinery Test Report Provided
Communication mode TCP/IP Modbus
Warranty of core components 1 Year
Core Components PLC, Motor
Place of Origin China
Package Size 1050*610*480mm
Gross Weight 70kg
Warranty 1 Year
Technical service Online support
Weight (KG) 60kg
Brand CHHANS
Axis 6 axis
Payload 15kg
Reach 1300mm
Control cabinet size 536X445X319mm
Maximum operating speed 2m/s
Repeatability ±0.1mm
IP protection IP54
Temperature range 0~50°
Typical power consumption 600W



UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 0



UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 1



UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 2



UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 3

UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 4



We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399



Transportation and packaging

UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 5

UBisense Vision Robot Cutting System Reach 1300mm Cooperative Robot Arm 6



Q&A



Q:What are the advantages of collaborative robots compared to industrial robots?



A:

  1. Flexibility: Cobots can work alongside human operators in various industrial and manufacturing applications. They can perform tasks that are too dangerous, repetitive, or physically demanding for humans, while also adapting to different production needs.
  2.    Safety: Unlike traditional robots, cobots are designed to work safely alongside humans without posing a risk to their physical well-being. They typically have sensors and safety features that enable them to stop or slow down if a human enters their workspace.
  3. Ease of use: Cobots are often easier to program and use than traditional robots, thanks to their user-friendly interfaces and intuitive programming languages. This makes them accessible to a wider range of operators, regardless of their technical expertise.
  4. Cost-effectiveness: Cobots can be more cost-effective than traditional robots because they require less infrastructure and can be quickly and easily reprogrammed for different tasks. They also have a smaller footprint and can be easily integrated into existing production lines.
  5. Increased productivity: Cobots can help improve productivity by working alongside human operators and handling repetitive or labor-intensive tasks, freeing up workers to focus on more complex or value-added activities.
