Place of Origin:
china
Brand Name:
YDobot
Certification:
ul
Model Number:
EWR-YJ5
Contact Us
video

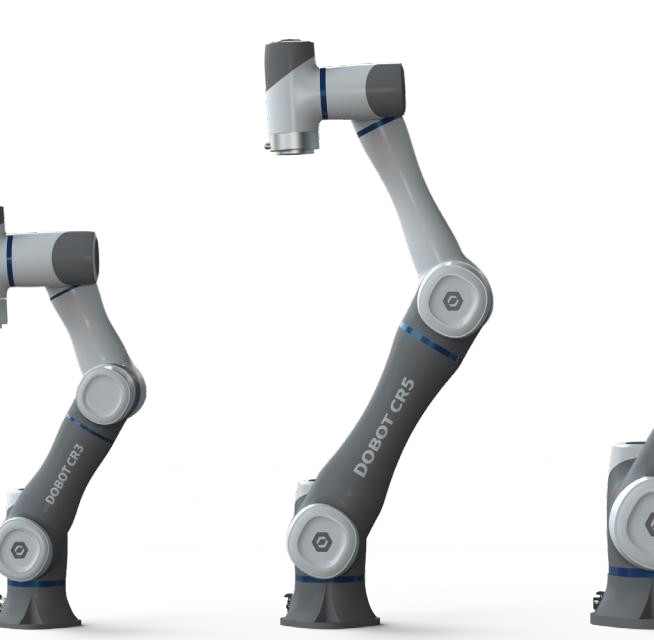

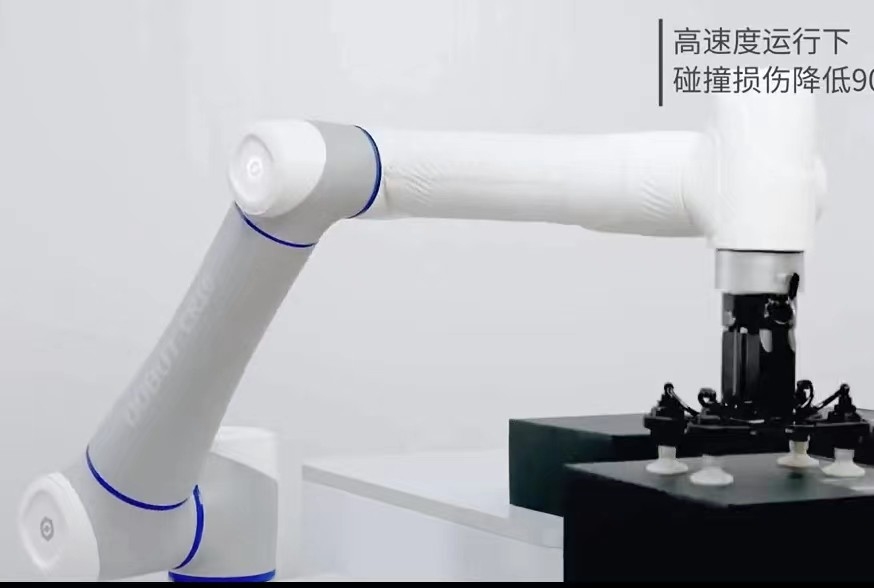

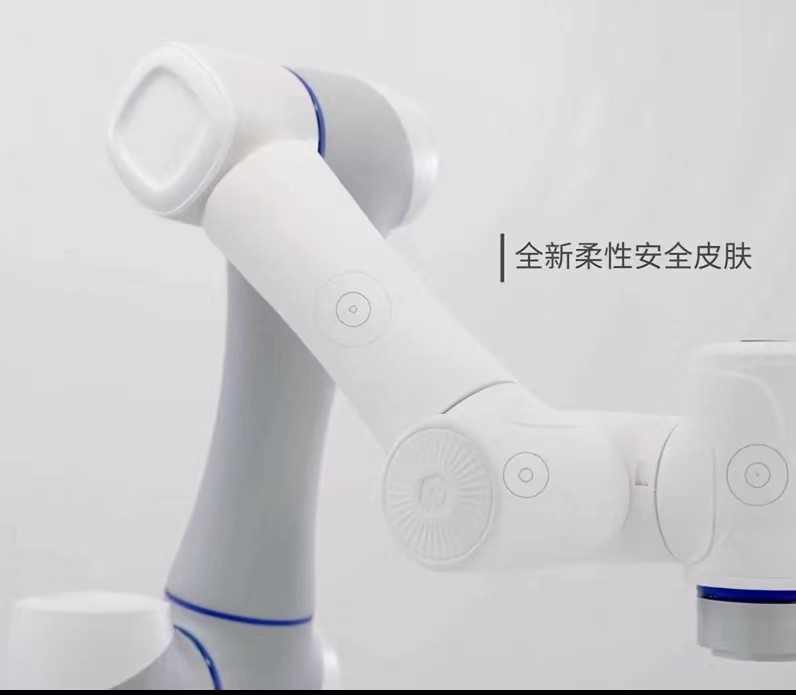

Small footprint and light weight cooperative robot can load 5kg fast layout robot
Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
Customer pain points:
Manual detection is inefficient and cannot be operated for a long time.
Solution:
The nucleic acid automatic liquid mixing/transferring machine adopts a CR3 cooperative robot, which can automatically complete the operations of feeding, capping opening, liquid mixing, liquid transferring, capping closing, blanking, etc. The accuracy can be controlled to 0.002ml, and the four mixing can be realized. This scheme can meet the production needs of liquid mixing and liquid transfer in the medical field, save manpower, archive and query data, and be accurate and controllable.
Customer value:
24-hour operation improves the detection efficiency.
High accuracy to avoid human error.
Product advantages:
CR series lightweight fuselage takes up less space and can be flexibly operated in narrow space.
If you need more product information, you can call me directly or add my WeChat:+861860167639
| ITEM | VALUE |
| Applicable Industries | Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes |
| After Warranty Service | Video technical support, Online support |
| Local Service Location | Online technical support |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Key Words | Light weight cooperative robot arm |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Communication mode | TCP/IPModbusWIFIEther CAT |
| Control cabinet size | 360*160*402.4mm |
| Warranty | 1 Year |
| Technical service | Online support |
| Weight (KG) | 25kg |
| Weight of control cabinet | 12kg |
| Axis | 6 axis |
| Payload | 5kg |
| Reach | 900mm |
| Rated voltage | DC48V |
| Maximum operating speed | 4m/s |
| Repeatability | ±0.02mm |
| IP protection | IP54 |
| Temperature range | 0~45° |
| Typical power consumption | 150W |
Transportation and packaging
