Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE
Model Number:
YYSC11
Contact Us

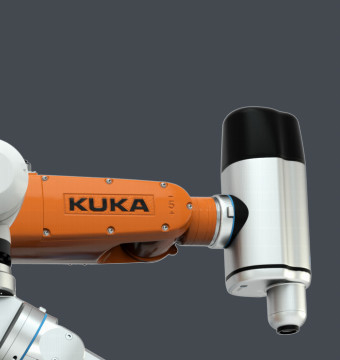

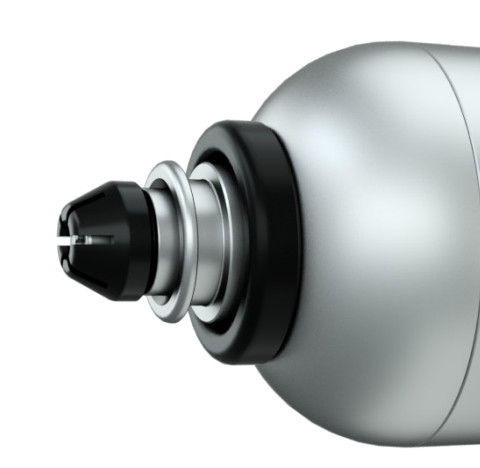

Robotic screw locking machine using integrated, electric brushless DC motor
Intelligent Screwdriver, easy to realize the fastening process of multiple screws
To avoid downtime due to manual conversion
• Optimal working state - consistent, fast - with dynamic force
Control and intelligent error detection
• Expand the possibility of collaborative automation with built-in protection
| NO | Name | Description | unit |
| 1 | Processable materials | Plasticmetalwood | |
| 2 | Screw specification range | M1.6~M6 | |
| 3 | Torque range | 0.04~5 Nm | |
| 4 | Torque accuracy |
If torque<1.33Nm/0.98lbft, 0.04Nm/lbft |
|
| 5 | Torque accuracy |
If torque>1.33Nm/0.98lbft.3, 3% |
|
| 6 | Output speed | max 340 RPM | |
| 7 | Screw length in full safety zone | 35/1.37 | mm/inch |
| 8 | Handle stroke (screw shaft) | 55/2.16 | mm/inch |
| 9 | Force of safety facilities |
35~45 |
N |
| 10 | IP level | IP54 | |
| 11 | Size | 308*86*114(mm). 12.1*3.4*4.5(inch) | |
| 12 | Weight | 2.5 kg | |
| 13 | Propeller size | M1.6;M2;M2.5;M3;M4;M5;M6 |
Product characteristics
