Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:
LBR iiwa 7 R800
Contact Us

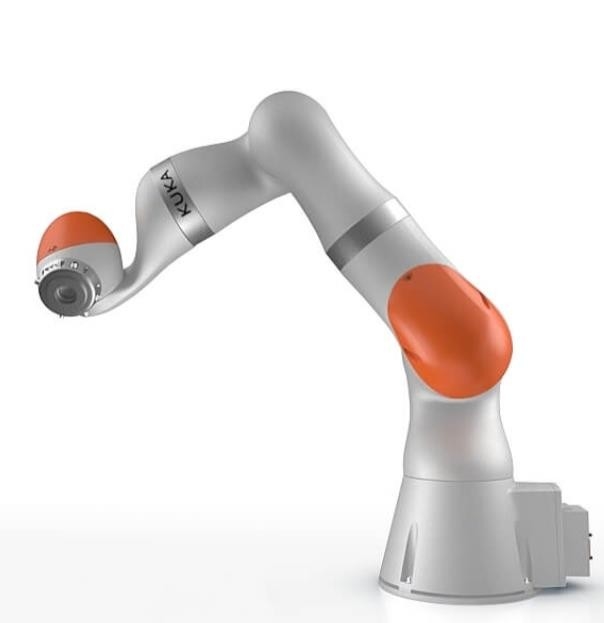

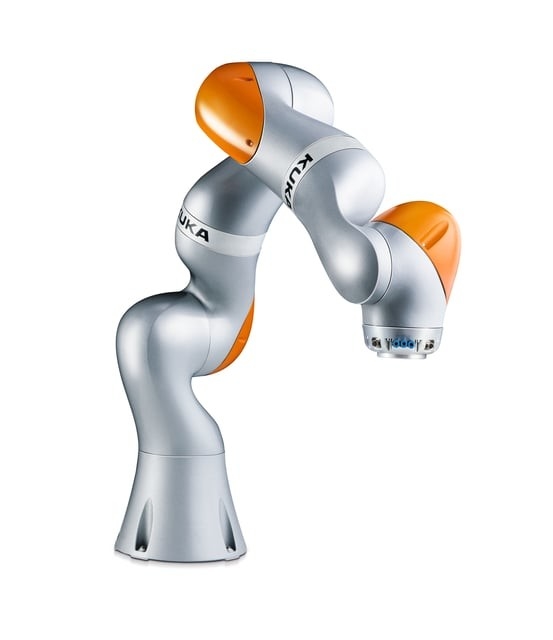

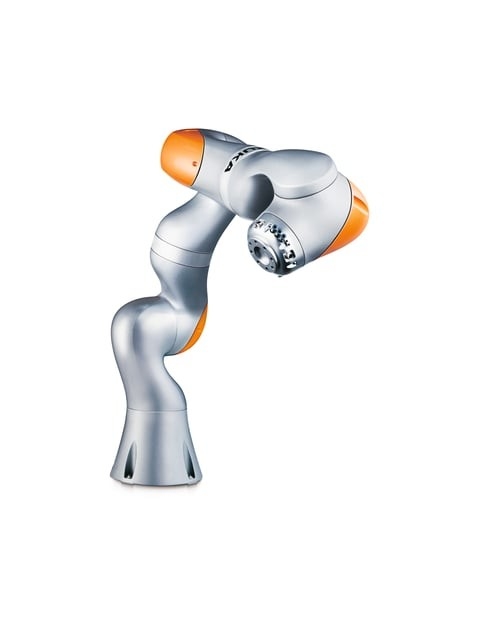

The application of a 7kg LBR iiwa 7 R800 small robot in Applying/Painting/Gluing
Quick response
The lightweight robot LBR iiwa can immediately recognize contact and reduce force and speed through joint torque sensors. It handles sensitive workpieces through position and buffer control, and there are no areas that can cause pinching or shearing.
LBR iiwa achieves a new automation solution without the need for protective barriers
On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.
LBR iiwa achieves a new automation solution without the need for protective barriers
On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| ITEM | VALUE |
| Applicable Industries | Applying/Painting/Glueing |
| Assembly | |
| Handling | |
| Human-robot collaboration | |
| Machining | |
| Measuring/Inspection | |
| Palletizing/packaging | |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 23.9kg |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 23.9kg |
| Axis | 7 axis |
| Payload | 7kg |
| Reach | 800mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 98 °/s 98 °/s 100 °/s 130 °/s 140 °/s 180°/s 180 °/s |
| Repeatability | ±0.01mm |
| Protection rating | IP54 |
| Temperature range | + 5°C a) Manipulator during operation Standard (41°F) to + 45°C (113°F) |
Packaging and Transportation
