Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:
LBR iiwa 7 R800 CR
Contact Us

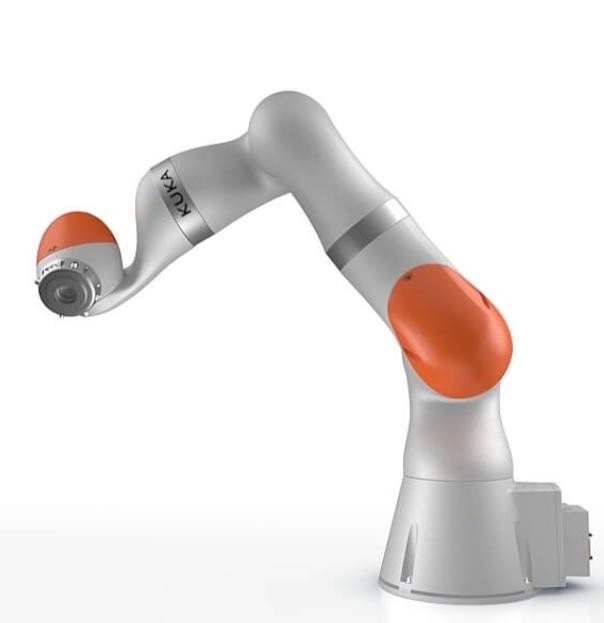

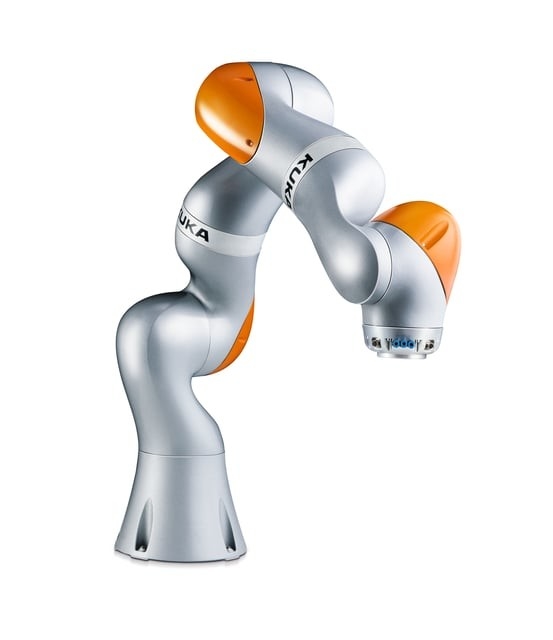

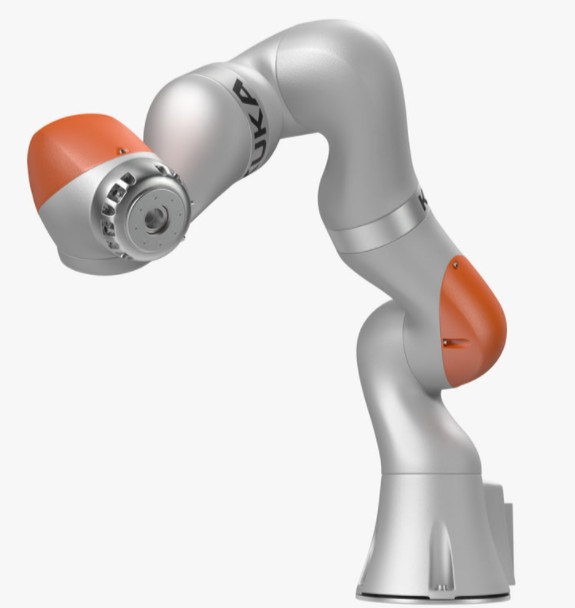

Application of LBR iiwa 7 R800 CR Small Robot in Installation, Handling, and Stacking
Slim and smooth design with 7 axis, fitting perfect for Human-Robot-Interaction
Extraordinary payload-weight-ration of 0,47 for non-stationary applications
Integrated motors, sensors &, control logic
KUKA Sunrise Operating system for advanced possibilities to design even challenging applications
Certified to Category 3 / Performance Level d for safe human-robot interaction
Complete robot system for industrial operation in production.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.
11111self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| ITEM | VALUE |
| Applicable Industries | Handling |
| Human-robot collaboration | |
| After Warranty Service | Video technical support/ Online support/Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 23.9kg |
| Technical service | Video technical support/Online support/Global official after-sales service |
| Weight (KG) | 23.9kg |
| Axis | 7 axis |
| Payload | 7kg |
| Reach | 800mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 98 °/s 98 °/s 100 °/s 130 °/s 140 °/s 180°/s 180 °/s |
| Repeatability | ±0.01mm |
| Protection rating | IP54 |
| Temperature range |
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)
Ambient temperature during stor./transp.
0 °C to 45 °C (273 K to 318 K)
|
Packaging and Transportation
