Place of Origin:
GERMANY
Brand Name:
KUKA
Certification:
CE
Model Number:
KR 3 D1200
Contact Us

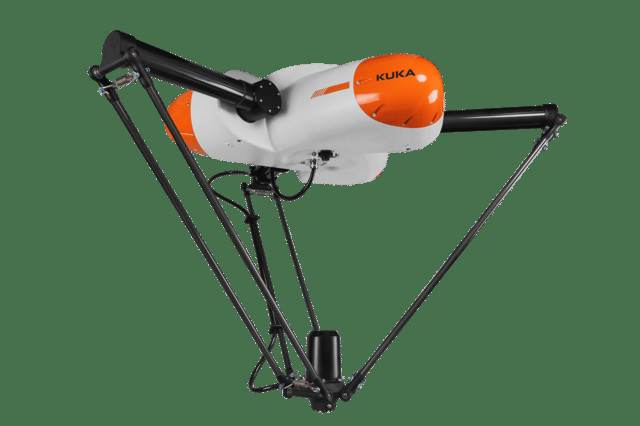

KUKA is suitable for KR DELTA robots in the field of handling and packaging.
Proficient in handling sensitive goods: DELTA robots in the primary processing field
The overall body is made of stainless steel, which is very easy to clean and operates at high speed: this is the Kygienic Machine version of the KR DELTA robot. Due to the use of corrosion-resistant stainless steel casing, it is not affected by acid, alkali, or hot water. The entire robot meets the protection level of IP 67, and the 4th axis can even reach IP 69K. The parallel small arm robot has dustproof and waterproof functions, and can be cleaned using a high-pressure cleaning machine with a pressure of up to 100 kPa. The structural design of DELTA complies with the German LFGB food grade requirements and the US FDA food standards.
Industrially validated design
Wide working range: action range 1200 mm, vertical working range 350 mm
Operating temperature range from 0 ° C to 45 ° C
Small footprint: ∅ 350mm
Low maintenance costs
No need for re lubrication during service life
Lifetime lubricated gearbox
Self lubricating ball joint
Widely used
Suitable for automatic picking, packaging, and placement applications of various types of fast moving consumer goods.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| ITEM | VALUE |
| Applicable Industries | Handling |
| Palletizing/packaging | |
| Pick-and-place | |
| After Warranty Service | Video technical support/ Online support/Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Weight | 95kg |
| Technical service | Video technical support/Online support/Global official after-sales service |
| Weight (KG) | 95kg |
| Axis | 4 axis |
| Maximum payload | 6kg |
| Reach | 1200mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 168 °/s 168°/s 168 °/s 162 °/s |
| Repeatability | ±0.05mm |
| Protection rating | IP67 |
| Temperature range |
Ambient temperature during operation
0 °C to 45 °C (273 K to 318 K)
Ambient temperature during stor./transp.
-25 °C to 55 °C (248 K to 328 K)
|
