Place of Origin:
China
Brand Name:
YOUNGYOU
Certification:
UL CE
Model Number:
YY-01-01-W2500-002
Contact Us
video

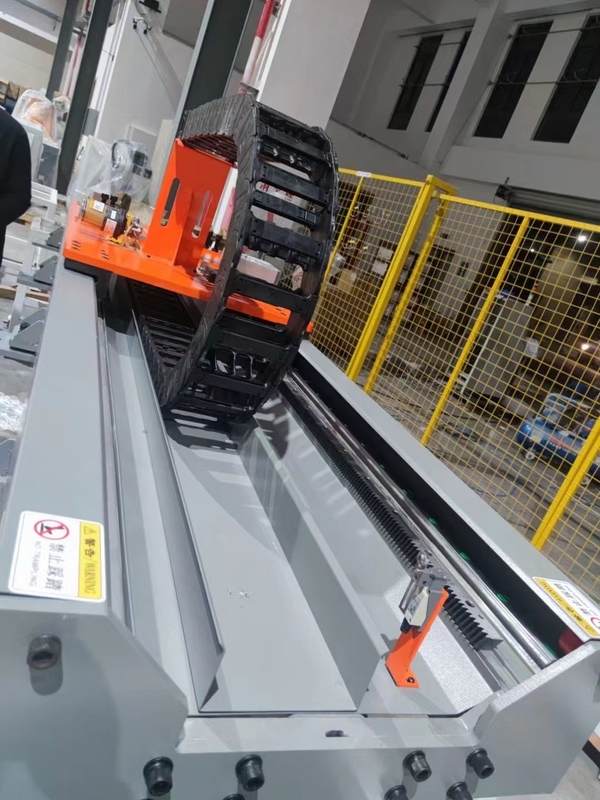

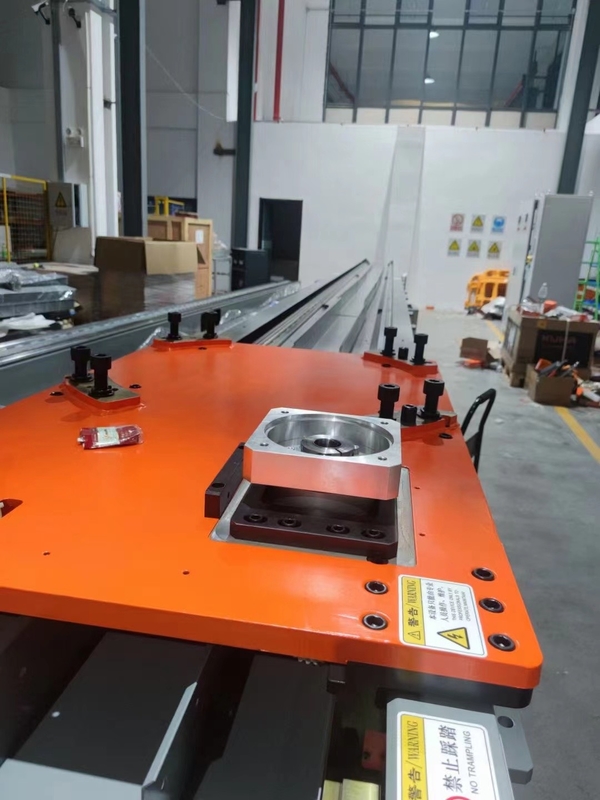

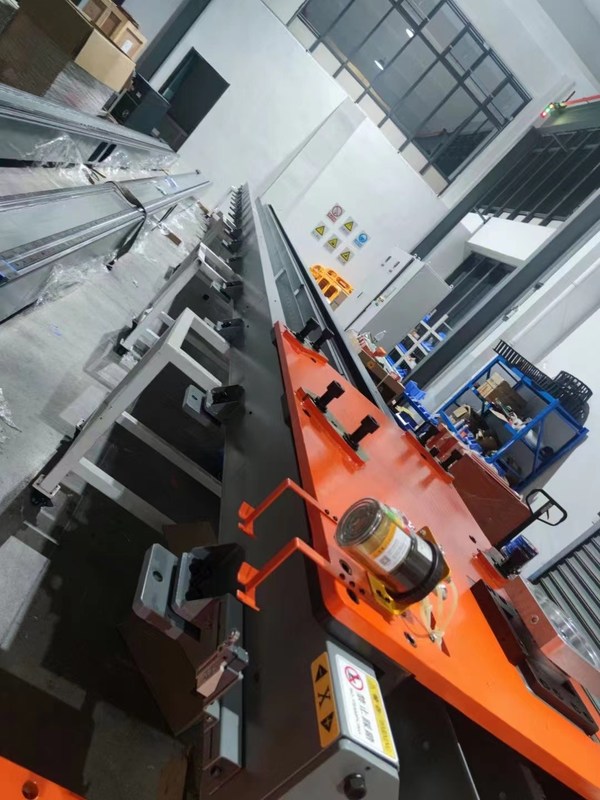

Suitable for logistics professionals, simple and reliable guide rails with a load of 1500kg
Product Features
1. Multi degree of freedom motion, where the spatial angle between each degree of freedom is a right angle.
2. Automatically controlled, reprogrammable, and all movements run according to the program.
3. It generally consists of control systems, drive systems, mechanical systems, operating tools, etc.
4. The main accessories adopt high-end imported brands and well-known domestic brands.
5. High reliability, high speed, and high accuracy.
6. Can be used in harsh environments, can work for a long time, and is easy to operate and maintain.
7. Each robot's walking axis can use roller guides, which have the advantages of fast running speed, convenient installation and debugging, suitable for long-distance applications, and can be used in harsh environments.
Flexibility, even at high speeds, the seventh axis system of the robot can withstand light or heavy loads, ensuring stable start and stop of the robot
Efficiency improvement, the seventh axis can enable a robot to provide efficient services for more machines and processes.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
