Place of Origin:
China
Brand Name:
YOUNGYOU
Certification:
UL CE
Model Number:
YY-01-01-W2500-002
Contact Us
video

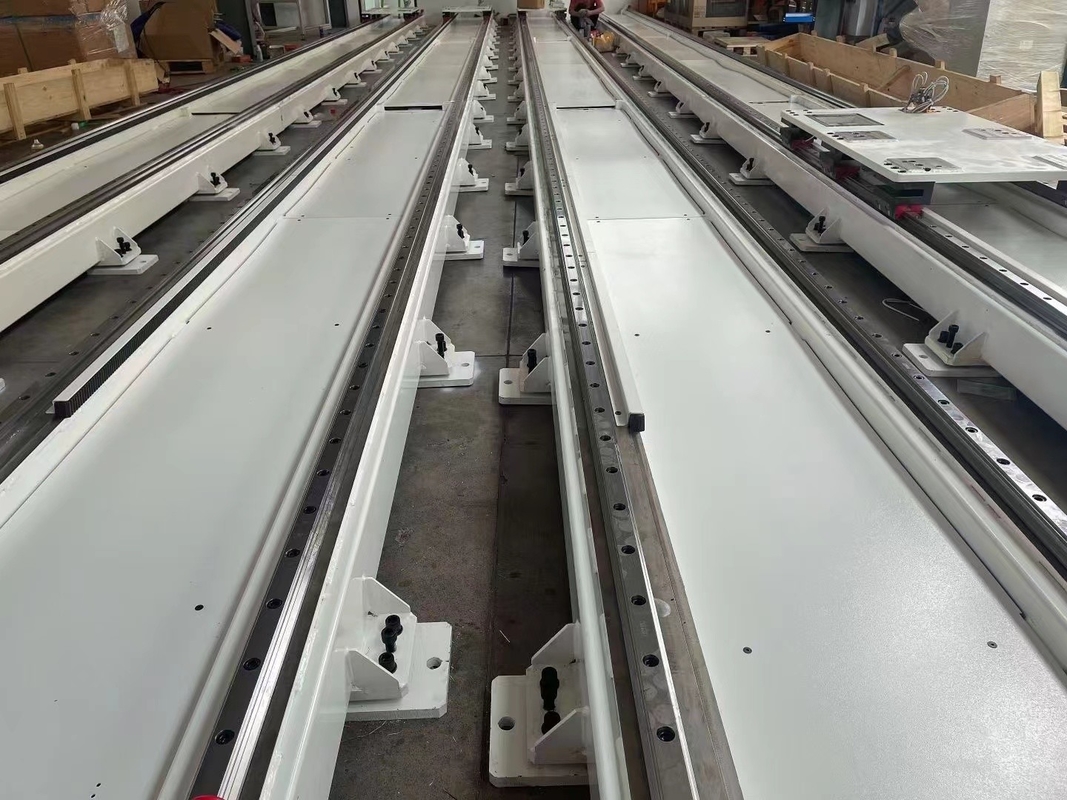

Guideways with strong applicability and simple control are widely used in the food industry
1, The quality is satisfactory.
The seventh axis of the robot has quality assurance, simple structure, low failure rate, reliable performance, and simple and convenient post maintenance. And the seventh axis of the robot is convenient and practical, with a small footprint, which is conducive to the layout of the production line in the customer's factory. It can be set in a narrow space and can be effectively used after on-site installation.
2, Strong applicability.
The seventh axis of the robot has strong applicability. When the customer's product specifications change, users only need to replace the end effector of the seventh axis of the robot to continue palletizing operations. The seventh axis of the robot can be widely used in various applications, such as food, medicine, electronics, cement, logistics, agriculture, etc.
Extremely adaptable to work
Before the widespread application of the seventh axis, a large amount of manpower was wasted in many industries, while also reducing the accuracy of work; The seventh axis robot of Jinyu has strong adaptability to work. Usually, it adjusts and customizes the effective stroke based on actual application scenarios, making its work compatibility stronger.
About the company

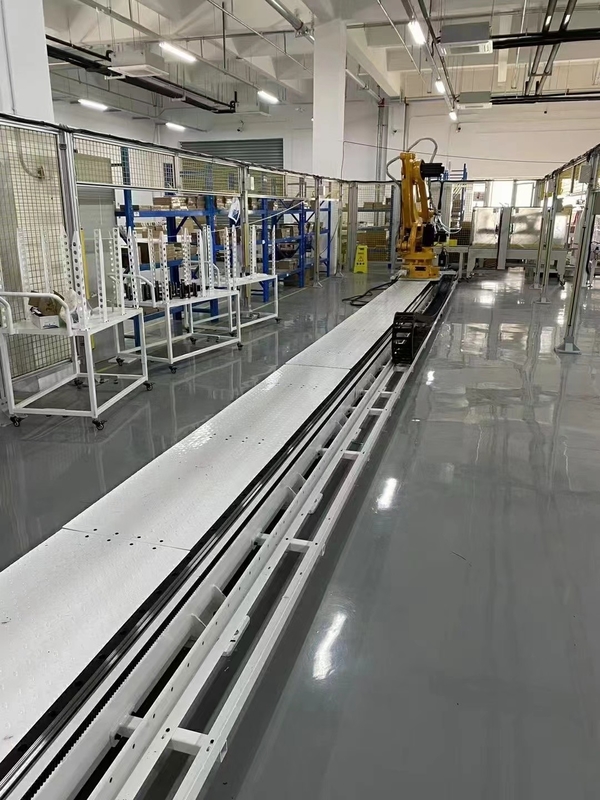

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
Packaging and Transportation
