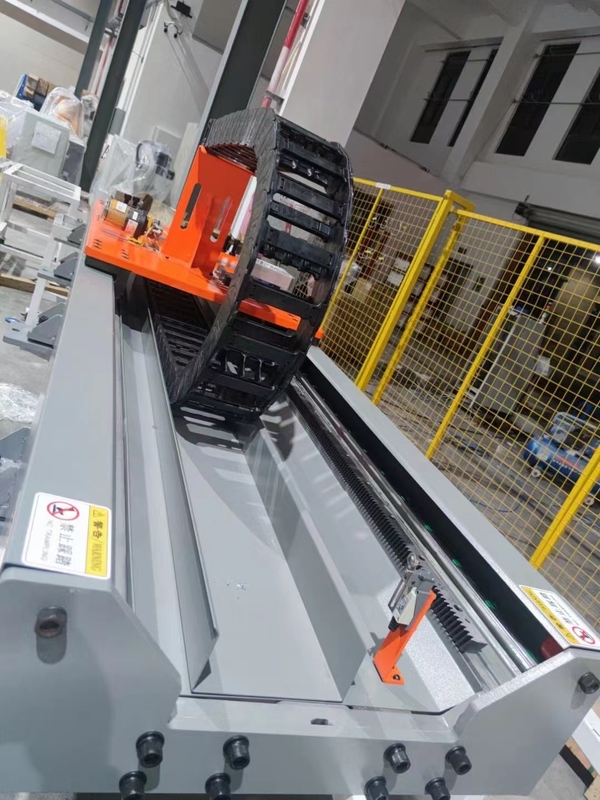

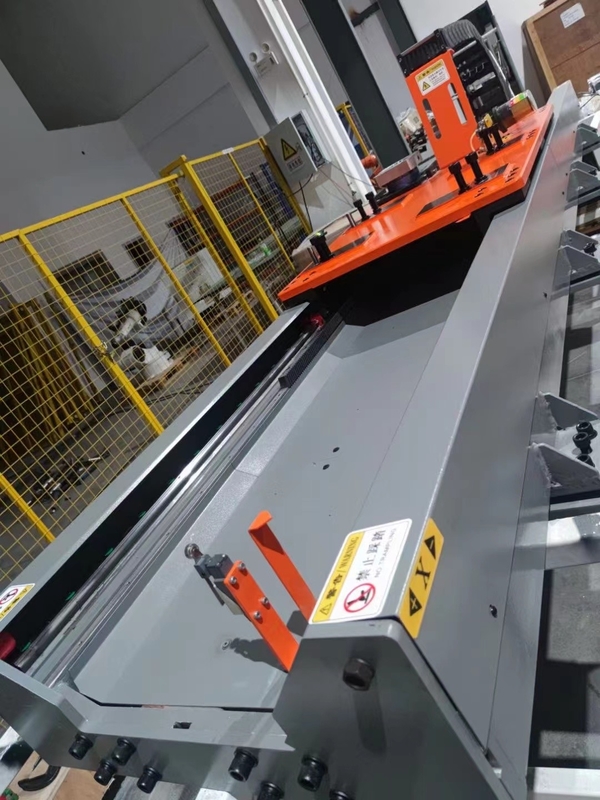

Stable and reliable guide rails in the field of mechanical processing. Simple and fast
Characteristics and advantages of high-precision linear guide rails
High precision: The high-precision linear guide adopts high-precision ball tracks and precise manufacturing processes, which can provide high-precision linear motion control and meet various high-precision machining and measurement applications.
High rigidity: The high-precision linear guide rail adopts high rigidity materials and design structures, which can provide good resistance to torsion and bending, ensuring the stability and accuracy of high-speed and high-precision motion.
High speed: The high-precision linear guide adopts optimized design and high-quality manufacturing process, which can provide high-speed linear motion control and is suitable for various applications that require high-speed motion.
Long service life: The high-precision linear guide rail adopts high-quality materials and precise manufacturing technology, which has good wear resistance and durability, ensuring long-term stable motion control and service life.
About the company

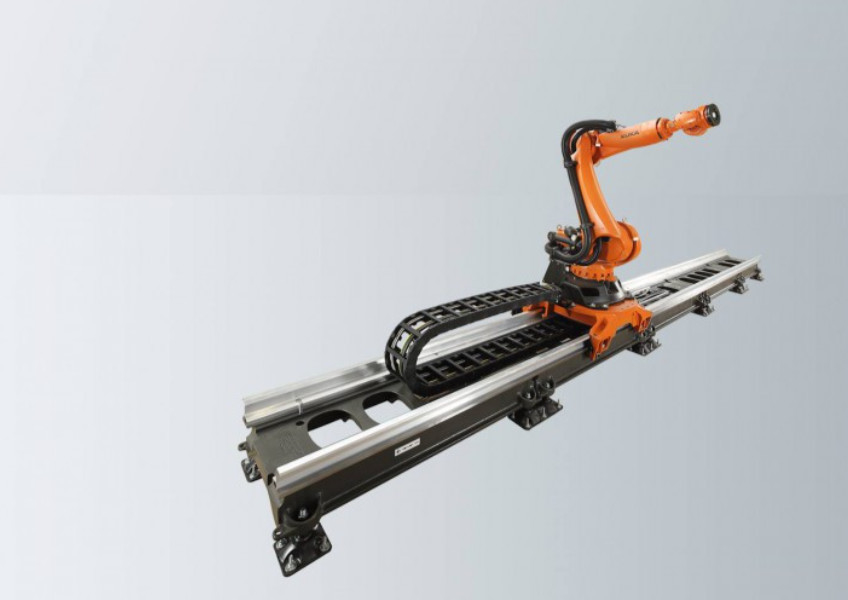

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
