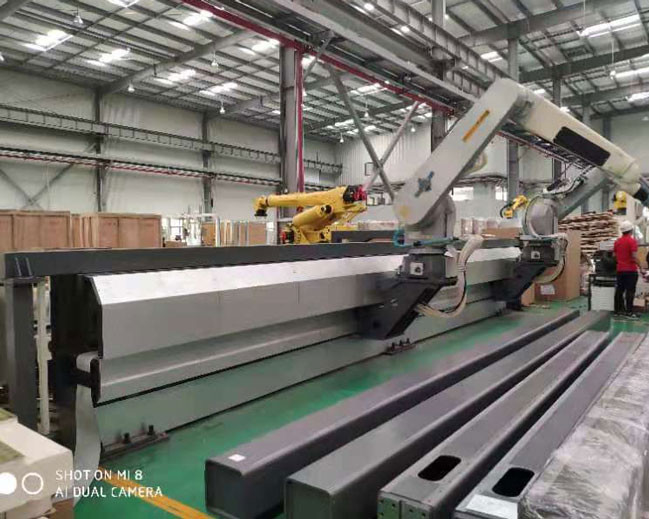

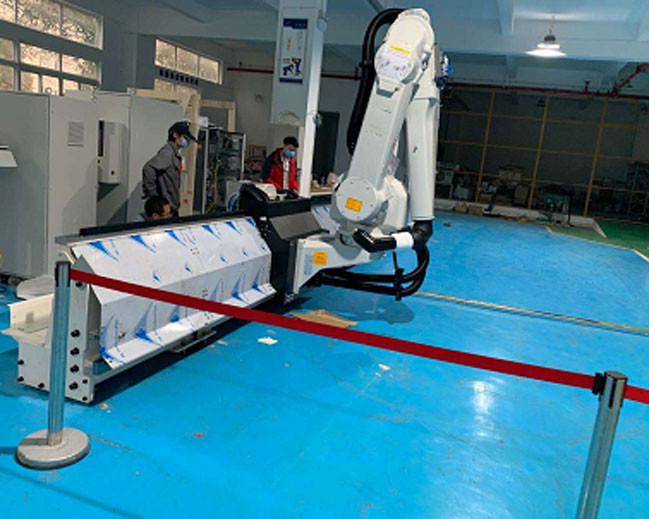

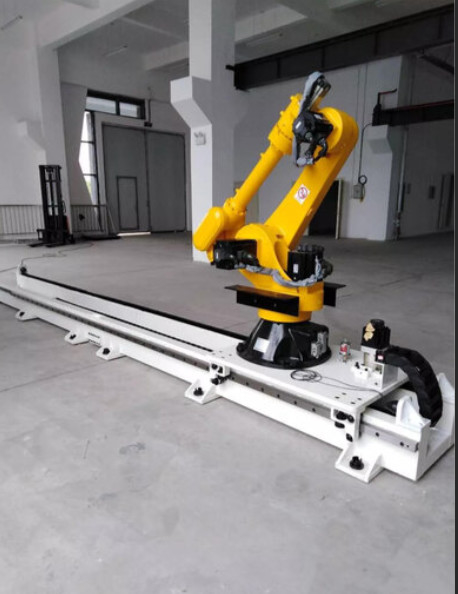

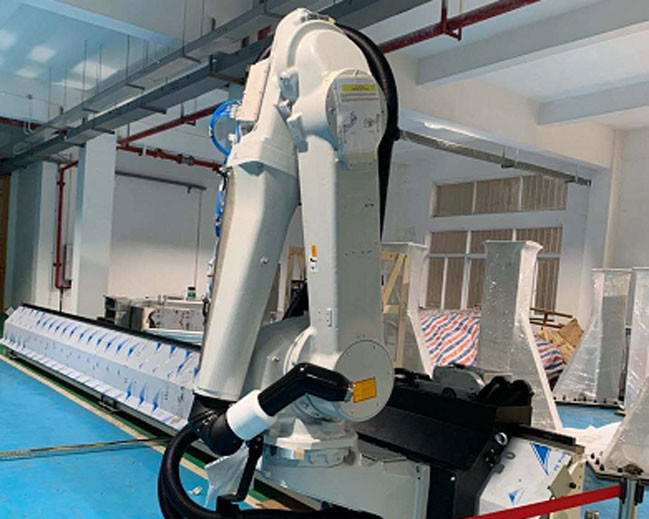

Suitable for the spraying industry with excellent explosion-proof guide rails
PRODUCT DESCRIPTION
The spray guide rail series products can be configured with options such as the total length of the walking shaft crossbeam, the number of robots, and installation methods to meet differentiated needs, and have excellent explosion-proof and high protection.
The control is simple without additional motion controller, and the motion of the walking axis can be directly controlled by the robot controller.
The equipment is driven by a servo motor and transmitted through precision reducers and high-precision gear racks, with low noise, stable motion, and high repeated positioning accuracy.
Double protection with a cover and belt effectively prevents paint mist from invading the interior of the walking shaft, suitable for harsh spraying environments.
Modular design, simple structure, easy installation, low failure rate, and easy maintenance. Multiple series of trips, with customizable travel lengths up to 100m in total.
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
The robots adapted to the guide rail include ABB IRB1200, IRB1410, IRB2600,IRB4600, IRB6700 and IRB7600 robots, KUKA's kr210, kr120, kr10, kr10, kr20, kr50 and kr70, FANUC M10, M20, m710, M1000 and M2000, Yaskawa GP7, GP8, GP12, GP25, AR2010, GP50, GP88, BA200l, GP255 PL900 and pl300.
Our robot guide rail is mainly composed of well-known brands such as Omron, THK and alpha in Germany. The guide rail has stable performance and low price.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
product details
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |

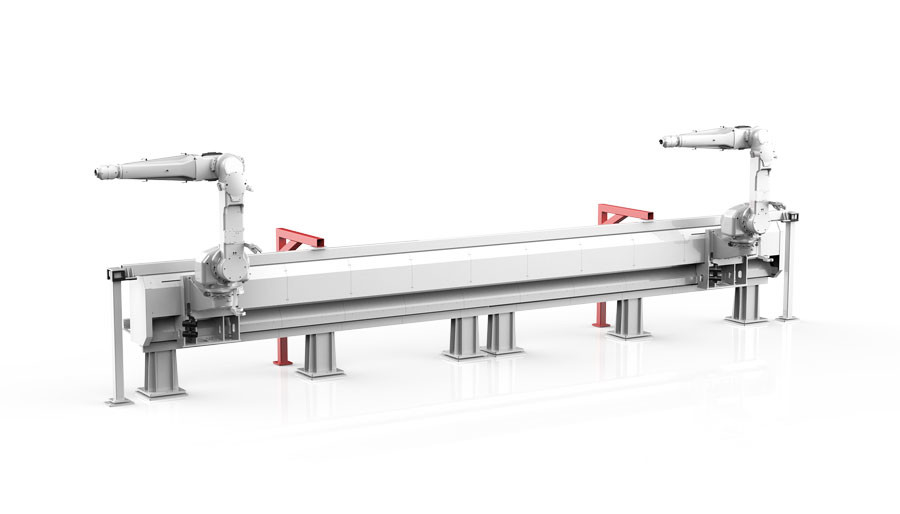

PRODUCT RENDERINGS
