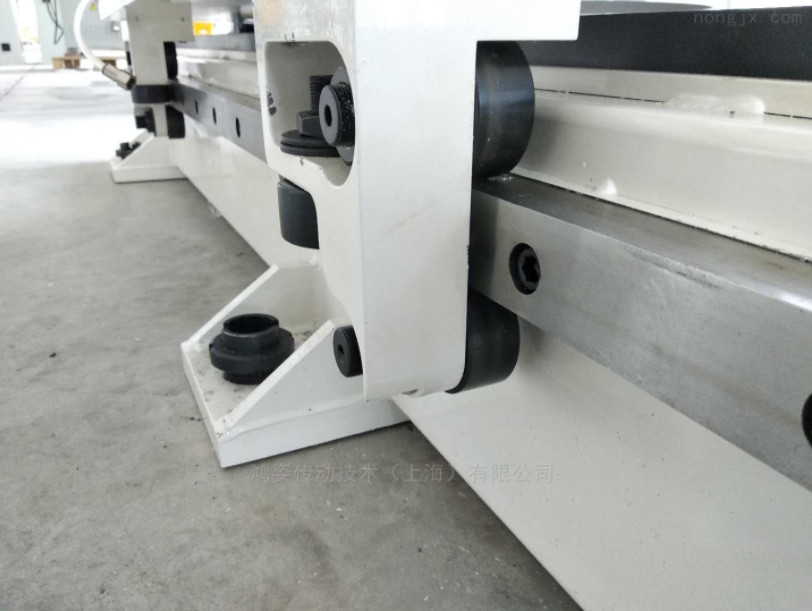

Automatically lubricated roller guide reduces failure rate and increases lifespan
Definition of Robot Guideway
To operate at multiple workstations with a large span, or to perform continuous and uninterrupted machining operations on various large components such as the body, wings, wind turbine blades, etc. over a long distance (such as welding, spraying, inspection, etc.), it is necessary to install the robot on a moving platform and extend and expand its operating range by adding "moving footsteps". Because most industrial robots are 6-axis, this movable motion platform is commonly referred to as the "seventh axis of the robot", abbreviated as the "seventh axis". (Guide rail)
The function of the guide rail
Robot guide rail (seventh axis), also known as slide rail, linear guide rail, or linear slide rail, is used in linear reciprocating motion situations. It has a higher rated load than linear bearings, and can bear a certain amount of torque. It can achieve high-precision linear motion with high efficiency and durability under high loads. Used for supporting and guiding components, it can improve the flexibility of the robot, expand its working range, and enable the robot to work stably and move.
About the company

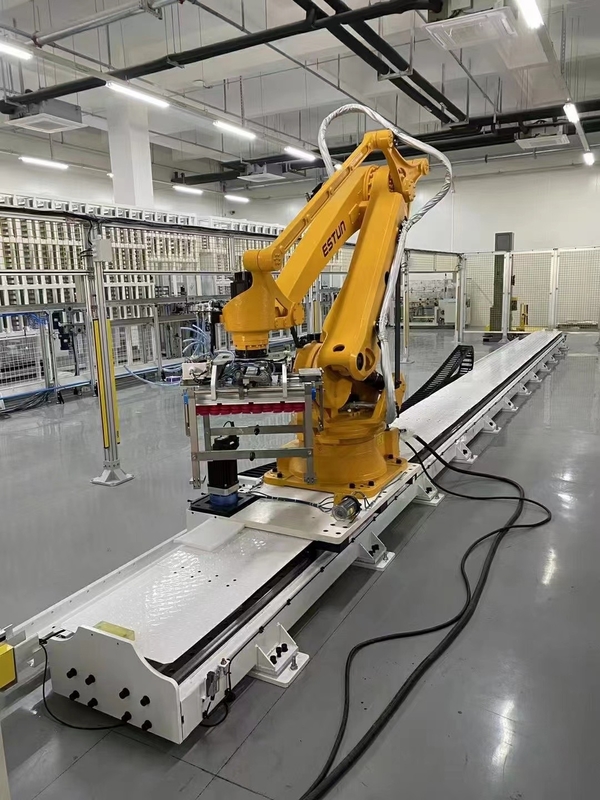

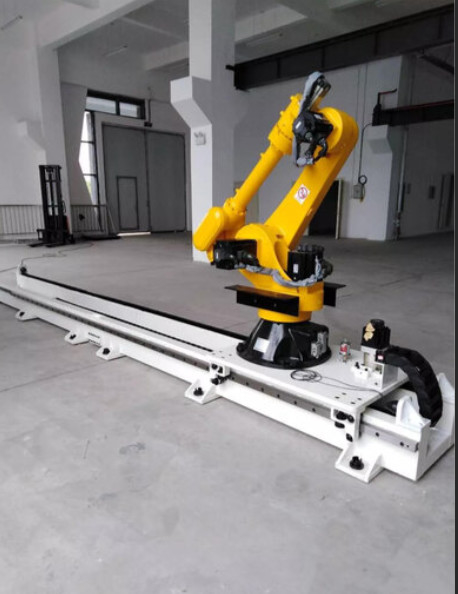

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
product details
| NO | Name | Brand/Specification |
| 1 | Track body | YOUNGYOU/W=700mm,H=350mm,L=As required by the buyer |
| 2 | Planetary reducer | SHIMPO Japan |
| 3 | linear guide rail | HIWIN TaiWan HGH45 |
| 4 | Slide block | HIWIN TaiWan HGH45 |
| 5 | Rack and pinion | China TaiWan YCC Helical gear |
| 6 | lubrication system | YOUNGYOU 1L |
| 7 | Dust cover | YOUNGYOU/Semi enclosed sheet metal type/Organ style |
| 8 | Hard limit elastic buffer | YOUNGYOU |
| 9 | Robot mounting plate | YOUNGYOU/1200*1000*30mm |
| 10 | Ground connecting plate | YOUNGYOU |
| 11 | Drag chain | Koduct/W=200mm,H=45mm,R250mm |
| 12 | Reducer connecting flange | YOUNGYOU |
| 13 | Servo motor | ①linkage Robot external axis |
| ②Non linkage servo motor | ||
| 14 | Adjusting bolt | M15 fine pitch thread |
| 15 | Limit sensor | Japan Omron |
