Closed Type DPS Robotic Dress Pack Components - With Spring Telescopic Structure System

Closed type DPS robot pipeline package with spring telescopic structure system

Product Introduction

Assisting the robot with pipeline packages is crucial for the external arm shape of the robot, as it can make the arm shape more intact and protect the external wiring and water pipes of the robot. It will not affect the normal operation and movement of the robot, and no matter what action the robot takes, it will not have any impact.

Optimized the activity performance of the pipeline package system on the 3-6 axis, integrated with a spring recovery device, the hoses and pipelines can operate flexibly and safely, and greatly reduce internal wear. Suitable for fast and simple installation of various robot models.

The spring expansion system simplifies the function of the pipeline box and can optimize the expansion and contraction of pipelines in a small range of 3-6 axes. Suitable for various robot models; Quick and easy installation and replacement.

When the wire bundle is subjected to external compression and impact, it can cause damage to the insulation layer of the wires inside the wire bundle, leading to short circuits between wires, and causing some electrical equipment to lose control, fuse, and other problems. The industrial robots on the production line can assemble pipeline packages. With this pipeline package, it not only runs smoother, but also has almost no faults. Even if there are faults, replacement will be very convenient, greatly saving assembly and maintenance time.

A good helper for robot wiring
Cable pipeline packages make your robot cables organized. Convenient and fast to use, reducing the wear and tear between cables. Effectively reduce maintenance costs.

Cobots Collaborative Robot Cable Protection
Tailored by a professional design team
Comprehensive protection
Reduce wear between cables

Arm diameter is 15-150mm

FPUR/FPURV
Highly flexible,medium/ heovyduty
Produced from specially modified polyurethane.Conduit type with low mechanical strength, allowing verytight bending radius. Extreme flexibility and particularly goodchafing resistance (e.g. axes 5 and 6 in robotic installations)

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product related parameters

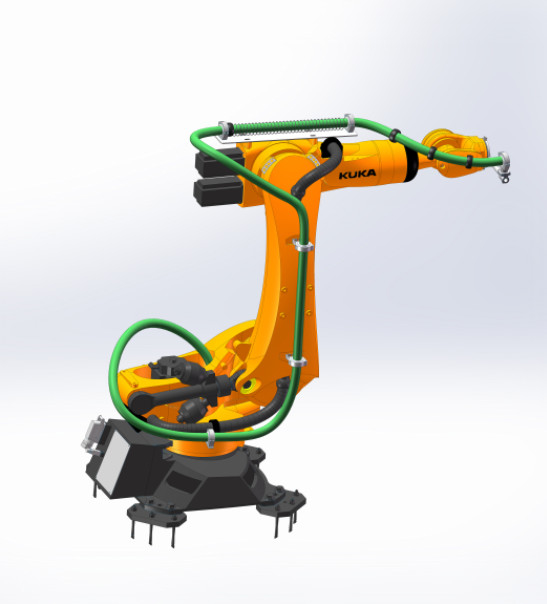

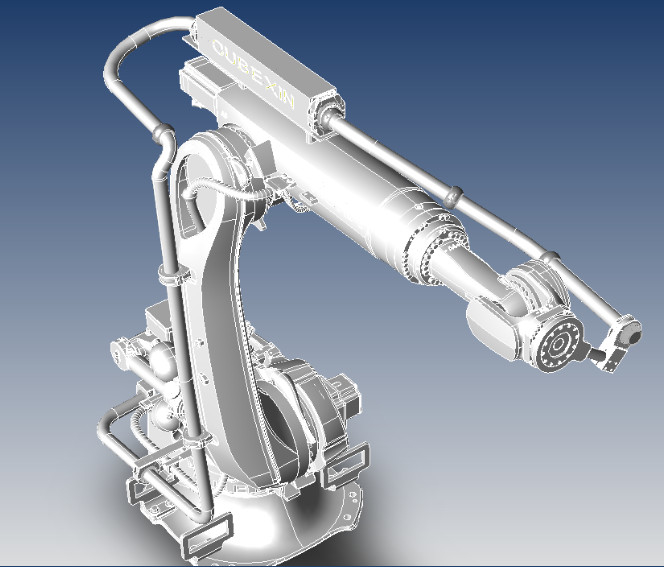

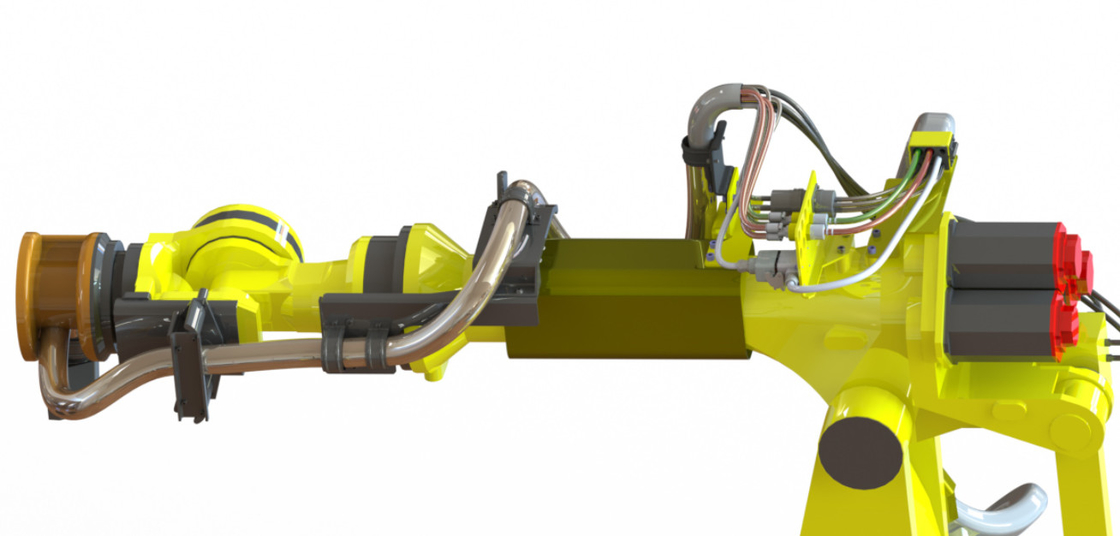

Robot pipeline package usage diagram

Packaging and Transportation
