Place of Origin:
China
Brand Name:
Fanuc
Certification:
CE
Model Number:
R-2000iC/100P
Contact Us

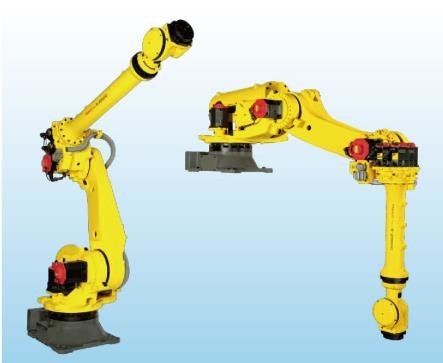

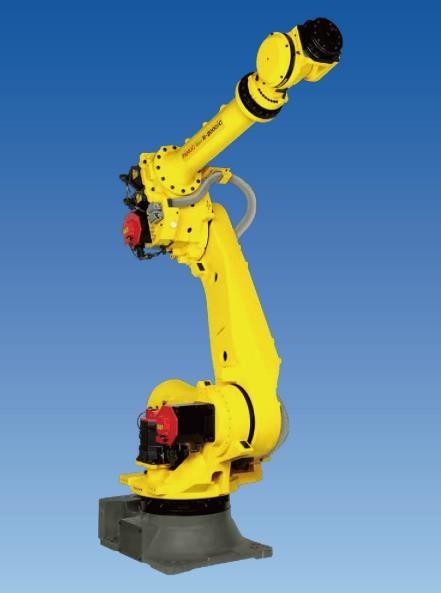

Fanuc long arm type for elevated installation and stacking spot welding process
Specialties
FANUC Robot R-2000ic combines years of experience and technology from FANUC, making it a versatile intelligent robot known for its high reliability and excellent cost-effectiveness.

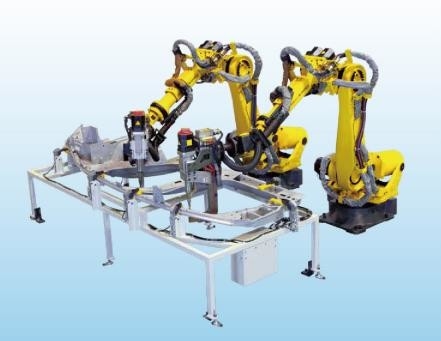

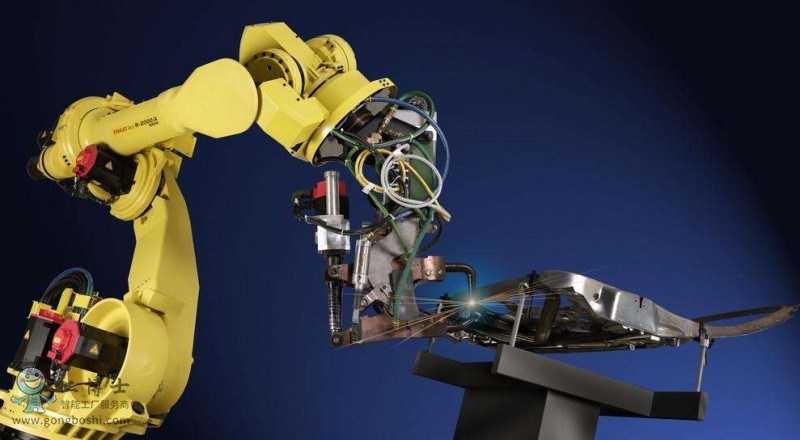

It can contribute to various application fields such as spot welding, transportation, and assembly for users.
Realized the lightweight and slimming of the robot mechanism.
By utilizing lightweight arms and new control technologies, motion performance has been significantly improved, resulting in a significant increase in production efficiency per unit time.
We can provide a variety of optional configurations represented by spot welding improved cable arms to meet the various requirements of users.
The use of robot control devices R-30i/r-30Plus can achieve energy conservation and space savings through the use of optional power regeneration configurations and miniaturized control devices.
You can use various latest intelligent functions such as learning robot function, scattered workpiece picking function, force sensor, visual tracking function, etc.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| ITEM | VALUE |
| Applicable Industries | Manufacturing factory, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction engineering, energy and mining, food and beverage store, advertising company, others |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | China |
| Brand Name | FANUC |
| Weight | 1090kg |
| Warranty | 1 Year |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 1090kg |
| Brand | FANUC |
| Axis | 6 axis |
| Payload | 100kg |
| Reach | 3540mm |
|
Manipulator during operation
|
Standard
|
| Installation method | Ground installation |
| Repeatability | ±0.05mm |
| IP protection |
Standard IP67 and Foundry Plus IP67
|
| Temperature range | + 5°C a) Manipulator during operation Standard (41°F) to + 45°C (113°F) |
|
|
Product parameters table
