Place of Origin:
CHINA/Japan
Brand Name:
Yaskawa
Certification:
CE
Model Number:
MOTOMAN-MPX2600
Contact Us
Yaskawa MOTOMAN-MPX2600 can load a 15kg robot for the automotive spraying industry
Introduce
Yu Yasukawa has its own servo system and motion controller products, and its technical level should be in the first echelon among Japanese brands. Therefore, the overall technical scheme of his robot is very similar to that of FANUC. Except for the outsourced reducer, other designs such as controller, servo system and mechanism are completed by himself.
The design concept of the Yaskawa robot is simple and sufficient. Among the four major players, the comprehensive selling price of Yaskawa Robotics is the lowest, coupled with the local support of Shougang Motoman (in my impression, Yaskawa should be the first robot company to officially enter the Chinese market, and as early as 1997, Shougang Motoman was established in a joint venture with Shougang). There should be many people in China who can use Yaskawa Robotics.
Characteristic
Multiple and small spray guns can be installed to achieve high-quality spraying
Configure plugs in various locations to achieve a suitable shape for the equipment
Reassessment of robot joint position, utilizing the area near the robot to achieve close configuration between the robot and the coated object.

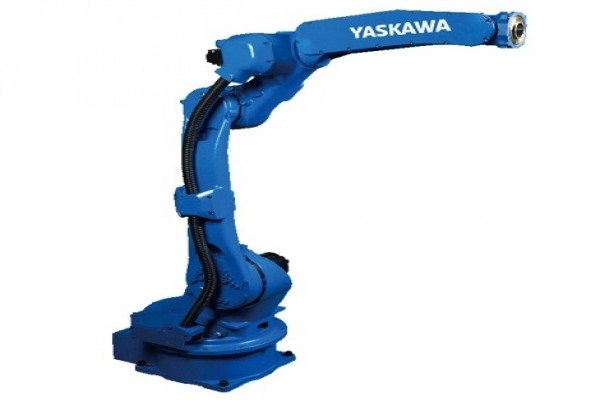

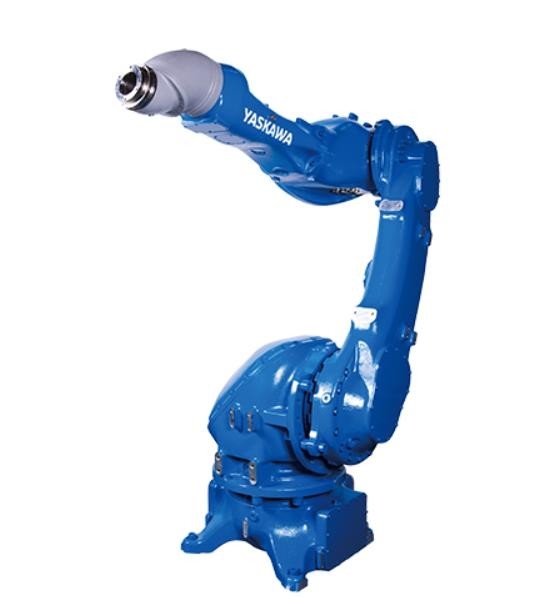

MOTOMAN-MPX2600
Adopting large caliber hollow arms!
6-axis vertical multi joint type
Load: 15KG
Action range: 2000mm
Control cabinet: DX200
Purpose: Handling, spraying
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| ITEM | VALUE |
| Applicable Industries | Manufacturing factory, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction engineering, energy and mining, food and beverage store, advertising company, others |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Place of Origin | CHINA/Japan |
| Brand Name | Yaskawa |
| Weight | 485kg |
| Warranty | 1 Year |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 485kg |
| Brand | Yaskawa |
| Axis | 6 axis |
| Payload | 15kg |
| Reach | 2000mm |
|
Manipulator during operation
|
Standard
|
| Installation method | Floor mounted/upside down/wall mounted/inclined |
| Repeatability | ±0.2mm |
| Explosion proof specifications |
TIIS/FM(/ATEX/KCs
|
| Temperature range | 0°C a) Manipulator during operation Standard (41°F) to + 45°C (113°F) |
|
|
Product parameters table
