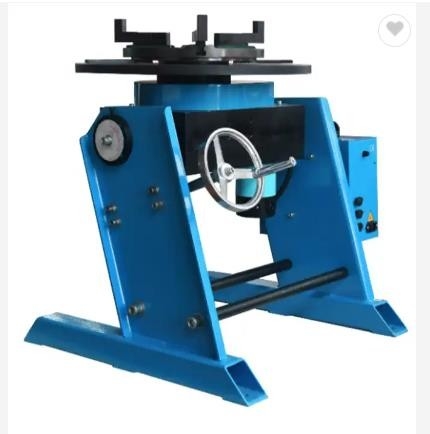

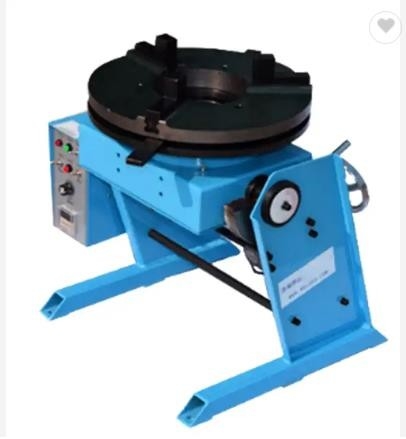

Name: Turntable Robotic Arm Welding Machine 1-Axis Mechanical Processing With Locator 400mm
Brand: YOUNGYOU
SKU: HP-100
Price: 3000 USD
Availability: InStock
Rating: 4.7 (151 reviews)

Home > products > Robot Positioner >

Turntable Robotic Arm Welding Machine 1-Axis Mechanical Processing With Locator 400mm

robotic welding turntable

robotic arm welding machine 1-axis

robotic arm welding machine 400mm

Place of Origin:

CHINA

Brand Name:

YOUNGYOU

Certification:

Model Number:

HP-100

Request A Quote

Turntable Robotic Arm Welding Machine 1-Axis Mechanical Processing With Locator 400mm

Product Details

Warranty Of Core:

1 Year

Weight (KG):

Dimension(L*W*H):

60*50*50cm

Rotation Speed:

0.05 To 0.5r/min

Table Diameter:

400mm

Table Hole Size:

45mm

Height Of Table:

500mm

Key Selling Points:

Competitive Price

Payment & Shipping Terms

Minimum Order Quantity

Price

3000

Packaging Details

Foam fixation+bubble film protection+wooden box

Delivery Time

6-8 WEEKS

Payment Terms

L/C, T/T

Supply Ability

20sets/month

Fanuc Robot Positioner Robot Capable Of Sea Transportation Plastic Spraying Treatment On Steel

Get Best Price

video

High Speed Aluminum Alloy Robot Positioner 0.1 - 1m/SWith ±0.05mm Accuracy

Get Best Price

video

Rotary Kuka Positioners Motorized Seventh Axis Equipped With KUKA Robot Rated Load 500kg

Get Best Price

video

Robotic Arm Welder Machine Automatic 6 Axis Laser Industrial Robotic With Positioner

Get Best Price

86-199-4568-4126

autocell@163.com

86-021-5688-5611

Contact Now

Product Description

Arm welding machine 1-axis mechanical processing robot turntable with locator

Product Description

HP-100/200/300 Positioner.

Designed to give maximum positioning flexbility by using the tilting and rotation of the table to manipulate the workpiece into the appropriate angle for welding or to position accurately for assembly and manufacturing requirements. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.

Features

 For annular welding, cutting, polishing and assembly.  Easy to set up a small welding center equipped with chuck, tracks, torch holders or stop cone.  DC infinitely variable speed control system.  Rotation time relay function optional.  Welder linked auto welding control function.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product specifications

Model	HP-100	HP-200	HP-300
Horizontal Capacity	100kgs	200kgs	300kgs
Vertical Capacity	50kgs	100kgs	150kgs
Rotation Speed	0.05-0.5r/min	0.05-0.5r/min	0.2-2.5r/min
Tilt Angle Range	0-90 degree / hand wheel	0-90 degree / hand wheel	0-90 degree / hand wheel
Table Diameter	400mm	400mm	500mm
Height of Table	500mm	500mm	600mm
Table Hole Size	45mm	45mm	90mm
Motor Power	120W	180W	220W
Weight	75kgs	80kgs	110kgs
Applicative Chucks	KD - 300/400	KD - 200 /300/400	KD - 300/400
Input Voltage	1ph 220V 50~60Hz	1ph 220V 50~60Hz	1ph 220V 50~60Hz

Product parameters table
