Robot Laser Welding System PFP-3015 Focal Spot Diameter 1.8mm

Welding robot PFP-3015 robot laser welding.    Focal Spot Diameter:1.8mm

Product Description

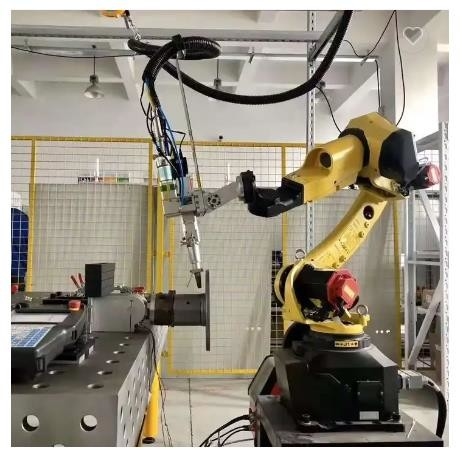

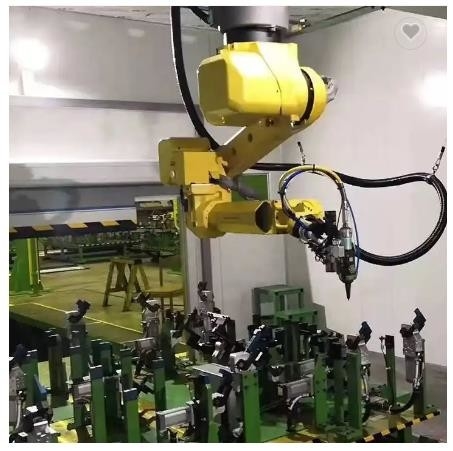

Pioneer multi-axis intelligent laser welding equipment is composed of special optical fiber laser head, high precision capacitive tracking system, optical fiber laser and industrial robot system. It is an advanced equipment for flexible welding of metal sheets with different thicknesses from multiple angles and directions. This laser cutting equipment is widely used in metal processing, mechanical manufacturing and automotive parts manufacturing, which have processing requirements for three-dimensional workpieces.

Machine Features
1)Long service life, 24 hours a day continuous production, effective cost savings;
2)overall lightweight design, load and accuracy improved significantly;
3)Suitable for a variety of small welding procedures, reduce the requirements on workers' operation skills;
4)can be matched with professional 3D off-line mapping software, which can realize automatic export of welding program and save time for manual proofreading of new products.

5)has high stability and strong expansibility, which is very convenient to realize multi-axis linkage or cooperate with other automation equipment.

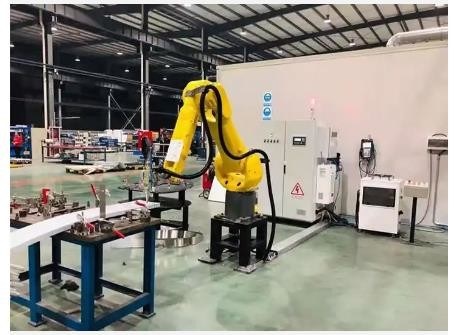

Composition of Welding Robot System
The system composition of a complete welding robot system generally consists of the following parts: robot operator, positioner, controller, welding system (special welding power supply, welding gun and welding clamp, etc.), welding sensor, central control computer, and corresponding safety equipment. According to the purpose, industrial robots will be configured with different welding systems to form different welding robot systems.

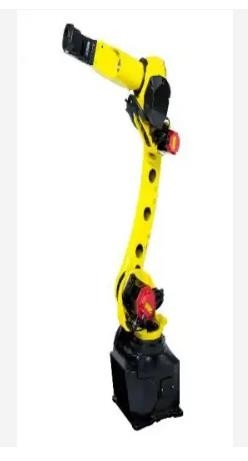

1. The industrial robot body is generally a 6-axis articulated manipulator driven by a servo motor, which is composed of a driver, transmission mechanism, robotic arm, joints, and internal sensors. The main task is to accurately ensure the required position, posture, and motion trajectory of the robotic arm end (fierce gun);
2. The industrial robot control cabinet is the central nervous system of the industrial robot system, including computer hardware, software and some special circuits, which is responsible for processing all information and controlling all actions during the working process of the industrial robot;
3. Welding power supply system, including welding power supply, specialized welding gun, etc;
4. Welding robots also have sensing systems, such as laser or camera sensors and their control devices;
5. Welding fixtures and system safety protection facilities.
The robot tool quick change device enables a single robot to exchange and use different end effectors during manufacturing and equipment processes to increase flexibility. It is widely used in automatic spot welding, arc welding, material lifting, stamping, inspection, edge rolling, assembly, material removal, burr cleaning, packaging, and other operations.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Product parameters table

Packaging and Transportation
