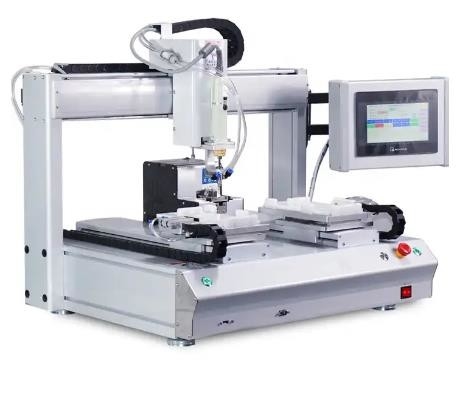

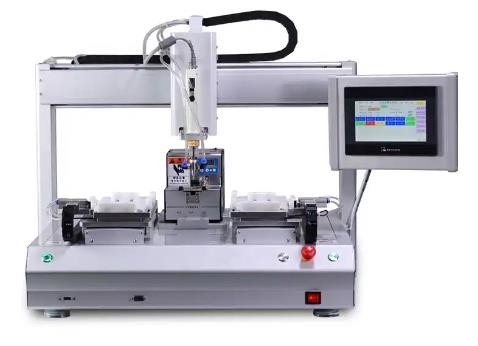

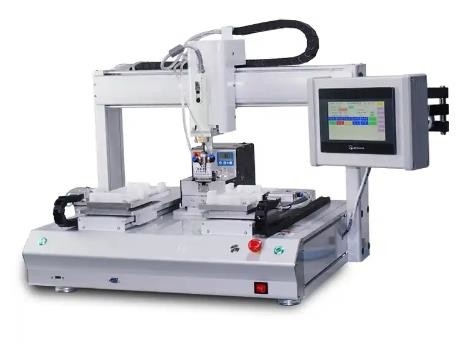

Automatic Screw Tightening Machine Two Platforms One Head Desktop Screwdriver Locking

Two platforms one head desktop automatic screwdriver locking robot screw tightening machine

Application background
The application of tightening and fastening is very extensive, ranging from aerospace, ships, and automobiles; Small as chairs, benches, etc. In the field of automated manufacturing, the application of tightening is indispensable, especially in the assembly of electronic components and automotive components, where the process requirements for tightening are more stringent.
Process Introduction
The screw tightening machine is a device that integrates multiple workstation turntable assembly lines, AI equipment preventive maintenance, data traceability, and product quality analysis functions. The multi-station turntable assembly line includes six processes: loading, visual alignment assembly, visual alignment screw tightening, laser coding, scanning, and cutting.
The workpiece is sent from the loading station to the turntable, and is sequentially processed through five stations: alignment assembly, screw tightening, laser coding, automatic scanning, and unloading. Before starting each workstation, it will determine whether to start or not based on the presence and status of the corresponding workpiece.

Solution
1. Servo pressure technology
① Reduce defect rate
Traditional servo control is affected by factors such as inertia and control accuracy, and the actual pressure value is prone to exceeding the target value, resulting in overshoot or pressure not reaching the target value, affecting product quality.
【 Servo pressure technology 】 Through the unique algorithm of the controller, the speed and pressure are stabilized at the same time, without reducing the operating speed of the device, and the pressure is still accurately aligned with the target value, ensuring product quality
② Production rhythm improvement
Dynamically switch from speed control to torque control during tightening through speed+torque+position control
To maintain stability in both speed and pressure, avoiding overshoot caused by high-speed operation, and reducing quality issues such as insertion errors and slipping.
③ Save adjustment time
Through Omron's control system, tedious program compilation can be avoided. After importing function blocks, the required target values and other data can be filled in, without the need for manual repeated adjustments.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Product parameters table

Packaging and Transportation
