DIY Pick And Place Robot Project Industrial 6 Axis 690x280x750mm

Best Industrial 6 Axis Robot for Pick and Place.Robot Arm Size:690 x 280 x 750 mm

Related Introduction

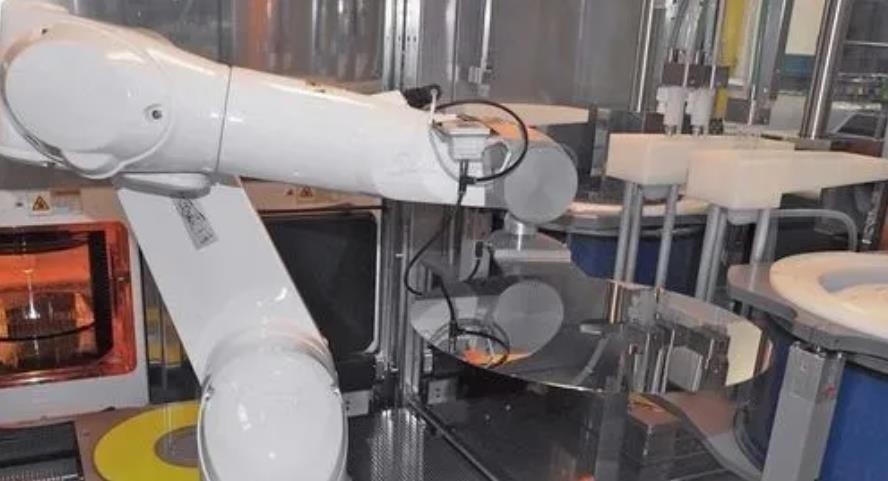

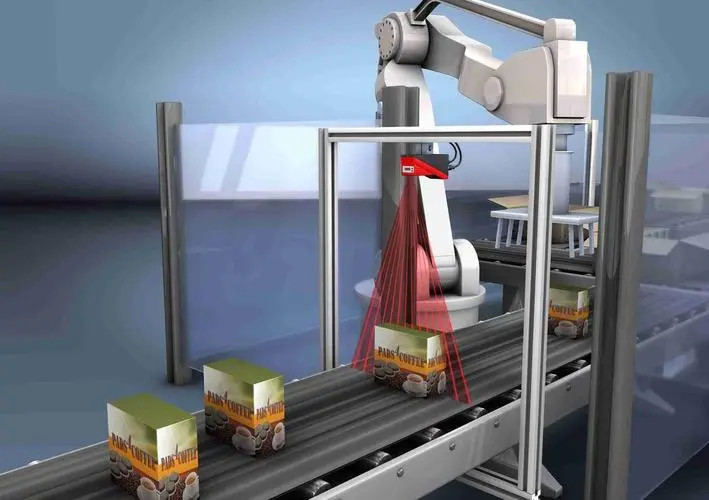

It is a 6 axis vertically articulated robotic arm. It is designed to perform industrial applications such as pick and place,
assembly, machine tending, etc. The robot is capable of lifting up to 3kg (max) of payload. The robot can be used with pneumatic gripper and optional vacuum gripper. We has also won the Defence Technology Spin Off award from Ministry of Defence. The robot is driven by servo motors on all axes. It comes with a pedestal with integrated control that allows for compact installation.

Objective
Training and control of an articulated robot for broad rationale applications or special purpose application thru Jog as well as Auto mode control for Fatigue tasks. Discern & understand the DC motors, gripper’s functionality & control methodology.

5. Assembly & Dismantling (Bearing Assembly to Shaft/gear)

An experiment module to demonstrate assembly capabilities of the robot. It consists of a bearing assembly that the robot can assemble and disassemble. "

6. Gluing and Painting Experiment Kit

An experiment module to demonstrate capabilities of the robot to emulate flexible operations such as gluing, painting. The kit will consist of a brush, glue and paint."

7. Testing Bank of Push Button Switches

An experiment module to demonstrate the capabilities of the robot in testing environment requiring repeated operation such as push button switches or keys. The kit will consist of a strip of push buttons for the robot to perform testing operations"

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Product parameters table

Packaging and Transportation
