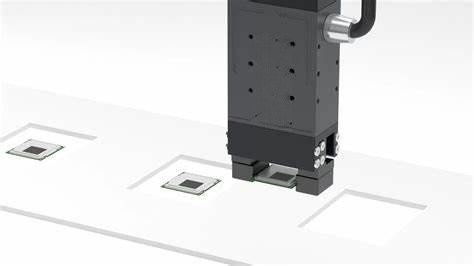

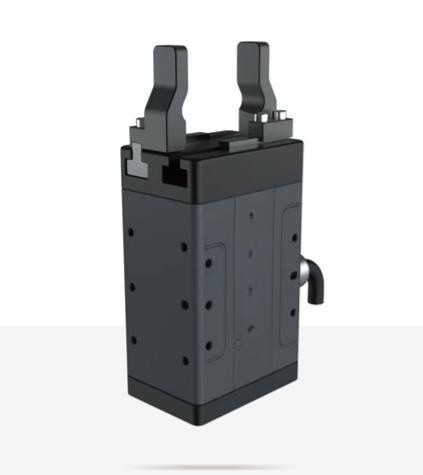

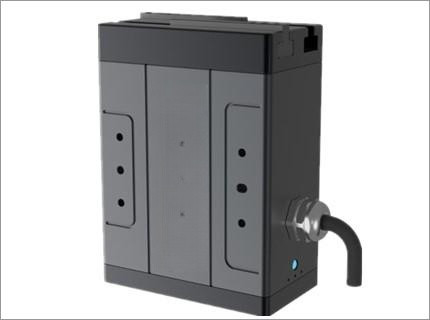

EPG40-100 Made in China Automatic Servo Motor Driven Industrial Robotic Arm Gripper
Product Profile
When designing and manufacturing electric grippers, efficient motors and transmission systems are used, which can generate sufficient clamping force and clamping speed in a short period of time, quickly gripping and transferring items. At the same time, the clamping device adopts a lightweight design, reducing the weight of the clamping device, making the gripping and transmission speed of the electric gripper faster and more flexible in movement. When dealing with items of different shapes, sizes, and weights, the adaptive ability of electric grippers is also very strong. They can automatically adjust the clamping force and position according to the characteristics of different items, ensuring fast and accurate gripping and transmission of items.
Adjustable and controllable force and position
Grab feedback drop detection
Four sided installation
Networking application
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code | EPG40-100-0L#-C0024-P40-A |
| Adjustable stroke | 0-40 mm |
| Single finger clamping force | 40-100 N |
| Opening/closing time | 0.9s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 2 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.337 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.85 A |
| Rated current | 0.4 A |
| Communication protocol | Modbus RTU(RS 485)
Digital I/O
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2 N·m |
| Allowable static moment of slider My | 1.5 N·m |
| Allowable static moment Mz of slider | 2 N·m |
Product parameters table
