Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
EPG-HP26-050
Contact Us

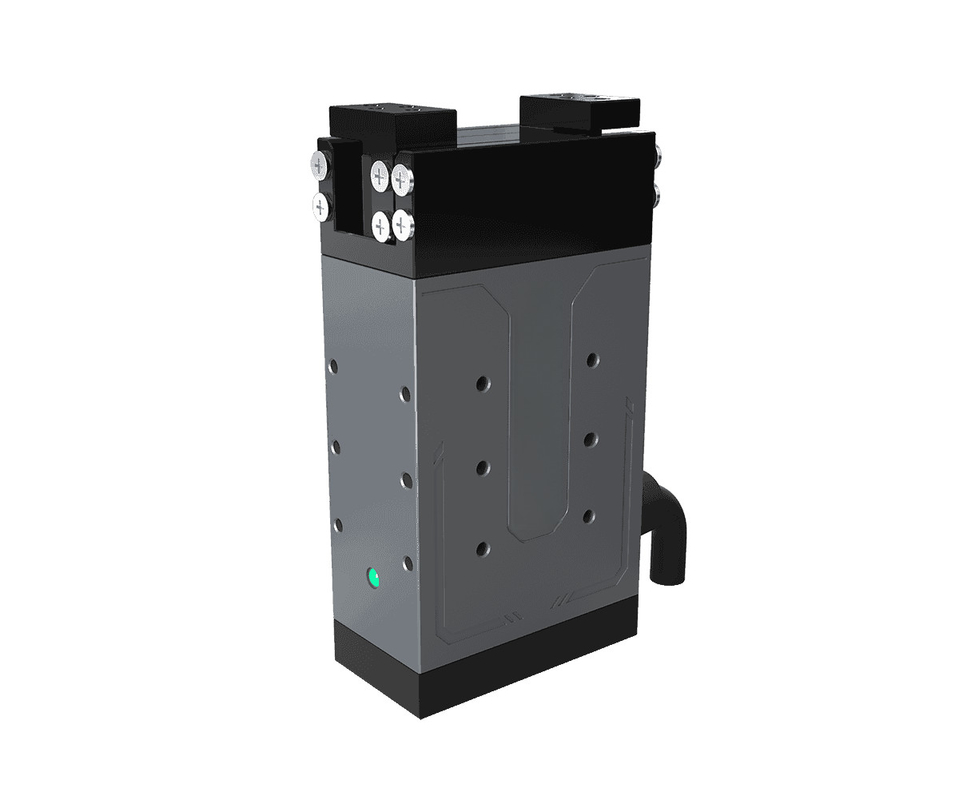

Electric Parallel Gripper EPG-HP26-050 Robot Arm Electric Grippers Robot Gripper for industrial
Product Introduction
The control system of the electric gripper is also a crucial part. The control system is mainly responsible for controlling the clamping force, clamping position, transmission speed, motion path, and other aspects. By using technologies such as sensors, encoders, and control chips, it can accurately control the clamping force and clamping position, ensuring the accuracy and stability of item clamping and transmission. When gripping and transferring items of different shapes, sizes, and weights, the electric gripper has strong adaptive ability and can automatically adjust the clamping force and position, ensuring the accuracy and stability of gripping and transmission.
The advantage of electric grippers lies in their stable power source, adaptability to clamping of various materials, and long service life. Since the driving mechanism and Pneumatic motor adopted by the electric clamping jaw are integrated, the clamping jaw has smaller volume and lighter weight, and does not need any clamping points.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EPG-HP26-050-0L#-C1024-P40-A
|
| Adjustable stroke | 0-26 mm |
| Single finger clamping force | 5-50 N |
| Opening/closing time | 0.35 s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 1 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.45 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.6 A |
| Rated current | 0.25 A |
| Communication protocol | Modbus RTU(RS 485)
Digital I/O
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 3 N·m |
| Allowable static moment of slider My | 2.5 N·m |
| Allowable static moment Mz of slider | 3.5 N·m |
Product parameters table
