Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
ERG32-150
Contact Us

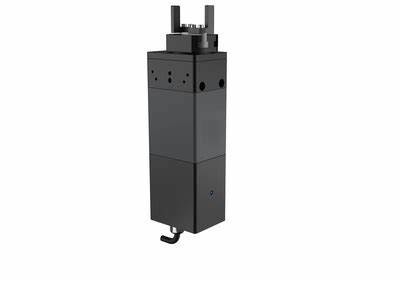

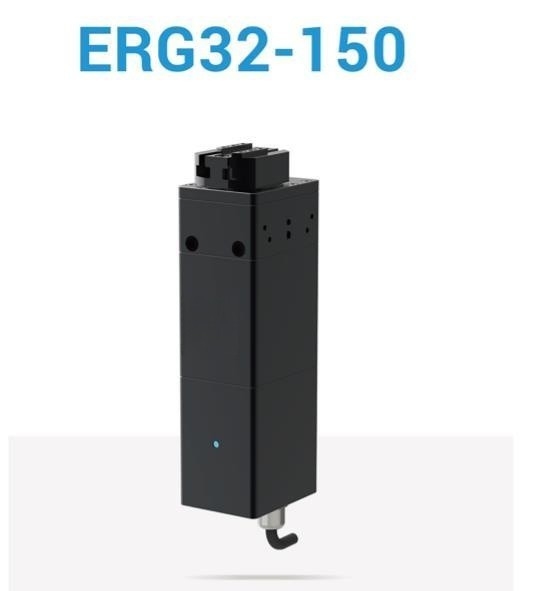

ERG32-150 Electric Rotating Fixture with Grab Feedback and Drop Detection
Product related information
Electric grippers, as an important component of production automation lines, have advantages such as speed, accuracy, and safety, and have been widely used in modern manufacturing. It utilizes advanced clamping devices and control systems to efficiently and accurately complete the operation of gripping and transferring items, ensuring production efficiency and stability of output quality. At the same time, the widespread application of electric grippers has also brought new impetus to the continuous progress and development of industry technology, promoting the further development and popularization of automated production lines, and enhancing the competitiveness and market position of enterprises.
Therefore, the advantages of electric grippers such as speed, accuracy, and safety have been widely applied in modern production automation lines, becoming an important force in promoting the modernization and upgrading of the manufacturing industry. In the future, with the continuous development of artificial intelligence, Internet of Things, cloud computing and other technologies, the application fields and functions of electric grippers will also continue to expand and upgrade, injecting new power and vitality into the transformation and upgrading of manufacturing industry and the development of digital intelligence. We have reason to believe that the electric gripper will play a greater role in the field of automated production and become one of the important drivers of Digital transformation of the manufacturing industry.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
ERG32-150-1L#-C0024-P40-A
|
| Adjustable stroke | 0-32 mm |
| Single finger clamping force | 40~100 N |
| Opening/closing time | 0.5 s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 0.5 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜70 dB |
| Body weight | 0.7 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 4 A |
| Rated current | 0.5 A |
| Communication protocol |
Modbus RTU(RS 485)
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2 N·m |
| Allowable static moment of slider My | 2 N·m |
| Allowable static moment Mz of slider | 2 N·m |
Product parameters table
