Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
ERG32-150T
Contact Us

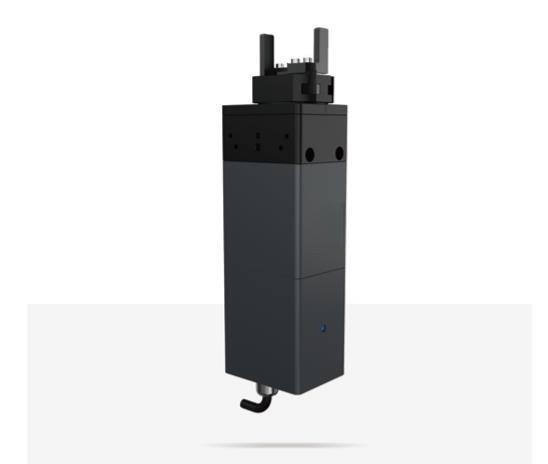

Positive and negative infinite rotation high torque electric rotary gripper/1000°/s
The principle of electric grippers
Electric gripper is a mechanical device that controls the opening and closing of the gripper through an electric motor to grip objects. The clamping part of the electric gripper is usually made of steel or aluminum alloy, and it is internally equipped with components such as an electric motor, reducer, sensor, controller, etc. When the electric motor starts, it drives the reducer to rotate, causing the gripper to open and close. Sensors can detect the opening and closing degree of the gripper, and the controller can control the motor to achieve the purpose of gripping objects.
Application of electric grippers
The application of electric grippers is very extensive, and the following are several common application scenarios:
1. Industrial production line: In industrial production lines, electric grippers can be used to grip various parts, products, etc., thus achieving automated production. It can be used in conjunction with robots, automation equipment, etc., greatly improving production efficiency.
2. Logistics warehousing: In the field of logistics warehousing, electric grippers can be used to pick up goods, boxes, etc., thus achieving rapid loading and unloading of goods. It can be used in conjunction with automated conveyor lines, warehousing robots, etc., greatly improving logistics efficiency.
3. Medical devices: In the field of medical devices, electric grippers can be used to grip surgical instruments, medical supplies, etc., thereby achieving automated operations. It can be used in conjunction with surgical robots, medical equipment, etc., greatly improving surgical efficiency and accuracy.
4. Family life: In family life, electric grippers can be used to pick up various items, such as beverage bottles, food bags, etc., making it convenient and fast.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
ERG32-150-1L#-C0024-P40-A
|
| Adjustable stroke | 0-32 mm |
| Single finger clamping force | 40~100 N |
| Opening/closing time | 0.5 s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 0.5 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜70 dB |
| Body weight | 0.7 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 4 A |
| Rated current | 0.6 A |
| Communication protocol |
Modbus RTU(RS 485)
|
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2 N·m |
| Allowable static moment of slider My | 2 N·m |
| Allowable static moment Mz of slider | 2 N·m |

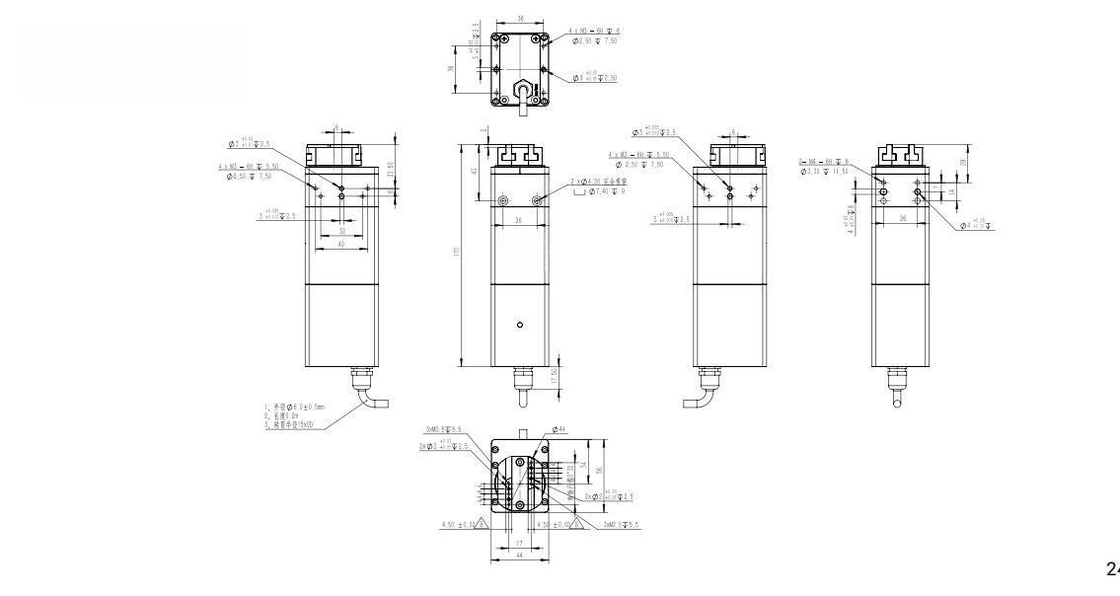

Product parameters table
