Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
RG52-050
Contact Us

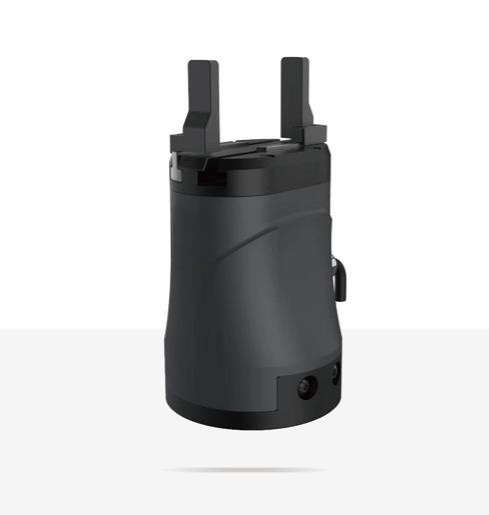

Electric grippers used directly in conjunction with collaborative robots. Stroke: 0-52mm
Product Features
1. High precision control: The servo electric gripper has high-precision position control and force control capabilities, and can adjust the clamping force and position as needed.
2. High speed response: The response speed of the servo electric gripper is very fast, which can achieve fast clamping and loosening operations, improving production efficiency.
3. Programmable control: Servo electric gripper programmable control, which can set different clamping forces and positions as needed to adapt to different working scenarios.
4. Low energy consumption: The servo electric gripper adopts efficient click and electronic control technology, which can save energy and reduce production costs.
Structural composition
The servo electric gripper mainly consists of the following components:
1. Clamping part: The clamping part is the most important component of the servo electric gripper, used to clamp objects. The clamping part usually consists of two or more clamping jaws, which are usually made of metal. Some clamping jaws are coated with a layer of rubber or plastic on the surface to increase clamping friction.
2. Click section: The click of servo electric grippers is usually an efficient DC point machine that can achieve high-speed and high-precision position control and force control.
3. Control system: The control system is the core component of the servo electric gripper, responsible for controlling the clamping force and position. A control system typically consists of one or more electronic controllers, sensors, and actuators.
4. Mechanical structure: The mechanical structure is the frame of the servo electric gripper, responsible for supporting the clamping part, clicking part, and control system. Mechanical structures are usually made of aluminum alloy or steel, with high strength and stiffness.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
RG52-050-0L#-C1024-P54-A
|
| Adjustable stroke | 0-52 mm |
| Single finger clamping force |
2-50 N
|
| Opening/closing time | 0.65 s |
| Positional repeatability | ±0.02 mm |
| *Maximum recommended load | 1 kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 0.75 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 0.8 A |
| Rated current | 0.5 A |
| Communication protocol | Modbus RTU (RS 485), digital I/O optional |
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 200N |
| Allowable static moment of slider Mx | 2.5 N·m |
| Allowable static moment of slider My | 2 N·m |
| Allowable static moment Mz of slider | 2.8 N·m |
Product parameters table
