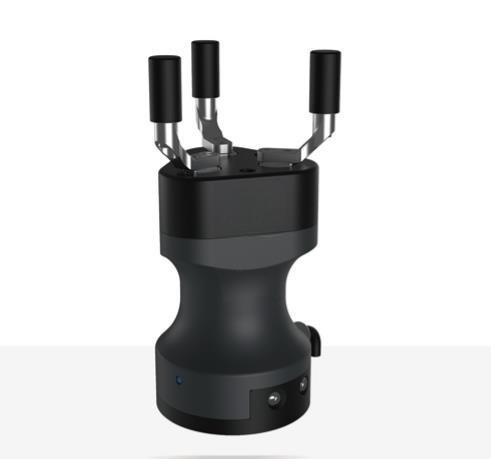

Programmable Gripper Robotic Arm Gripper For Robot Cheap Robot Arm Hand Gripper
Characteristic
The characteristic of a centering and clamping mechanism is that the positioning and clamping are completed by the same (or group of) components, that is, using this component to approach (or retreat) a certain symmetrical axis or plane at a constant speed, or using the uniform elastic deformation of the component to complete the positioning, clamping, or loosening of the workpiece. Due to the use of a centering clamping device, the symmetrical axis, plane, or centerline are the positioning reference for the workpiece, which can prevent displacement of the positioning reference and result in zero displacement error of the reference. If the symmetrical axis, plane, or centerline are also the process reference of the workpiece, then the positioning reference coincides with the process reference. If the reference does not coincide, the error is zero, and the total positioning error is zero. It is precisely due to these characteristics that the positioning reference of the workpiece remains unchanged and does not produce displacement, thus achieving the function of centering and clamping. Therefore, the centering and clamping mechanism is mainly applicable to the positioning and clamping of workpieces with geometric symmetry and based on the symmetrical axis, plane, or centerline as the process reference.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
RCG90-065-0L#-C0024-P40-A
|
| Recommended maximum clamping diameter |
90 mm
|
| Single finger clamping force | 65N |
| Positional repeatability | ±0.02 mm |
| *Maximum recommended load | 2 kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜40 dB |
| Body weight | 1 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10 V |
| Maximum current | 1.5 A |
| Rated current | 0.45 A |
| Communication protocol | Modbus RTU (RS 485) |
| Complies with international standards | CE,RoHS |

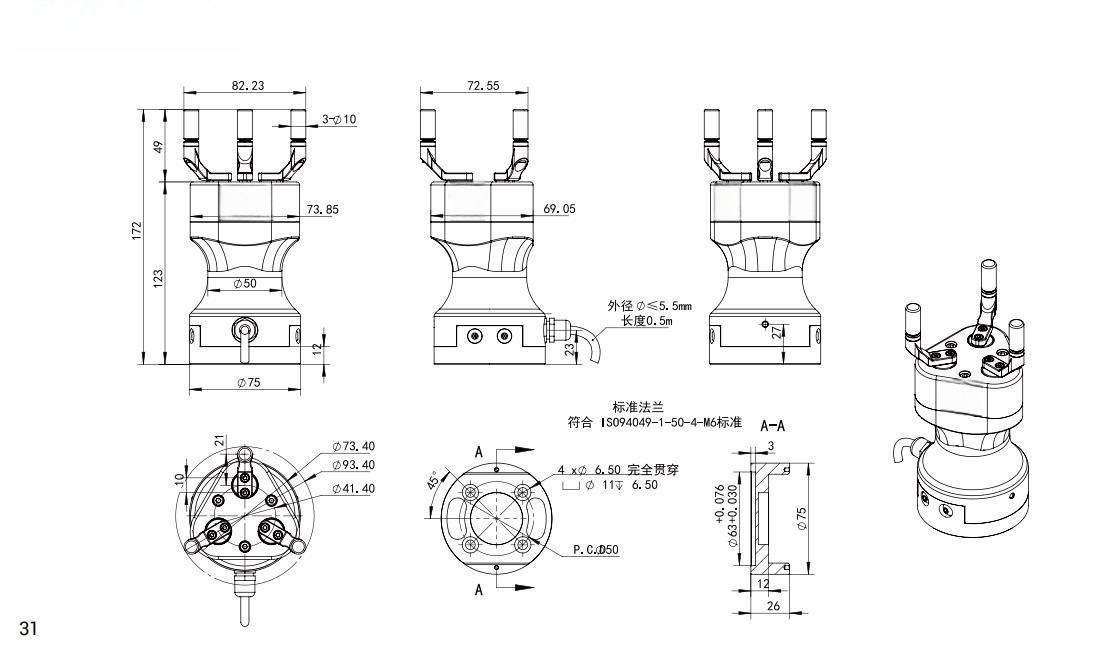

Product parameters table
