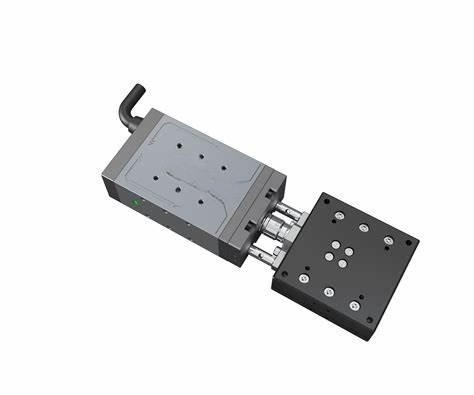

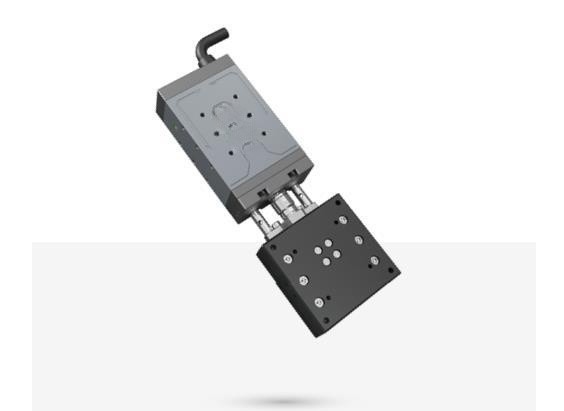

Electric linear sliding table ultra-thin size direct drive closed-loop control technology with 1mm lead

Electric linear sliding table ultra-thin size direct drive closed-loop control technology with 1mm lead

Purpose performance
The purpose and performance of mechanical sliding table: After installing the workpiece on the sliding table, it can perform reciprocating motion, or after installing power heads and other related accessories on the sliding table, various cutting, drilling, and boring movements can be carried out on the workpiece through the movement of the sliding table. Multiple sliding table combinations of different specifications can be used for processing complex components or mass production. Our factory produces sliding tables that can move quickly and slowly, It is an important machine tool accessory in the mechanical processing industry. In recent years, the mechanical industry has innovatively developed the machine tool industry. On the basis of the original mechanical slide, the development of innovative technology has developed a CNC mechanical slide, which is to replace the ordinary lead screw with a ball screw on the basis of the original mechanical slide, Embed linear guide rails on the surface of cast iron guide rails. Replace the gearbox motor with a servo motor to enable the sliding table to move forward and backward quickly. Use ball screws and wire rails to achieve high accuracy. This machine tool is used for processing the bottom surface of various large AC/DC generators and motor bases The machine tool is a floor type milling machine with an integral structural end face, and its workbench and milling head slide are both movable feed type guides with arbitrary feed rates and fast moving stages This machine tool can use the vertical movement of the milling machine slide to complete the positioning of the upper and lower end surfaces of the workpiece, and the workbench can move horizontally for processing.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications


Product parameters table






Packaging and Transportation
