Place of Origin:
CHINA
Brand Name:
YOUNGYOU
Certification:
CE RoHS
Model Number:
ELS70-018
Contact Us

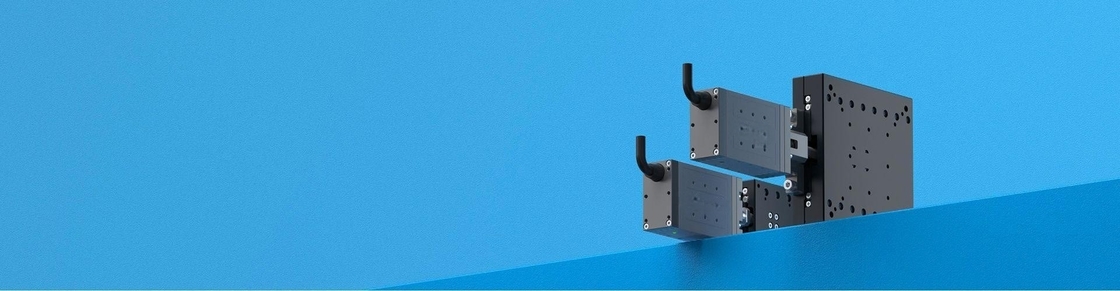

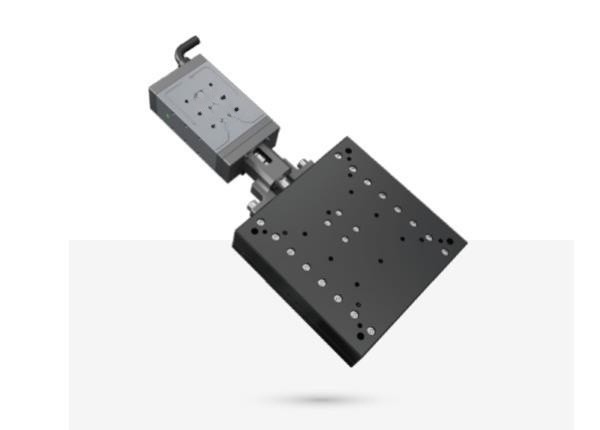

Electric linear sliding table ELS70-018 with ball screw drive, table size 120 * 120mm
Product Features
The electric sliding table has low cost and small size: it eliminates the need for oil pumps, fuel tanks, air compressors, as well as many complex pipelines and other auxiliary equipment. It is indeed a welfare for the machinery industry! The electric sliding table has low consumption and is driven by a motor that eliminates the energy conversion process, resulting in high overall efficiency and reduced energy consumption; The electric sliding table has less oil pollution and low failure rate. Due to avoiding the use of oil or gas transmission and no oil or gas leakage, the pollution problem has been fundamentally solved. The electric sliding table can be maintained for a long time during normal use. The electric sliding table adopts high-precision straight slider guide rail, which is stable in remote operation. The electric sliding table has a compact structure and the motor directly moves with a small appearance; Electric sliding can choose stepper motor or servo motor with corresponding driver. The electric platform has aluminum alloy body material, and the product weight is light. The electric sliding table is widely used in various industries, such as entertainment industry: robot tubes and joints, dynamic seats, etc; Automotive industry: testing instruments, etc; Industrial food machinery reduction, sea porcelain machinery, machine transfer reduction, spraying equipment, lifting platforms, etc; Medical devices.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
ELS70-018-1L#-C0024-P40-A
|
| Slide material | Aluminium alloy |
| Table size | 120*120 mm |
| Length of travel | 70 mm |
| Transmission mode | Ball screw |
| Lead | 1 mm |
| Drive shaft diameter | Ф8 mm |
| Maximum speed | 20 mm/s |
| Positioning accuracy | 0.005 mm |
| Horizontal maximum load mass |
18 kg
|
| Vertical maximum load mass |
8 kg
|
| Repeatability |
±0.001 mm
|
| Rated voltage |
DC24±10 % V
|
| Rated current |
1.2 A
|
| Quality |
1.58 kg
|
| Protection grade |
IP40
|
| Wiring Method | Bottom or side outlet |
Product parameters table
