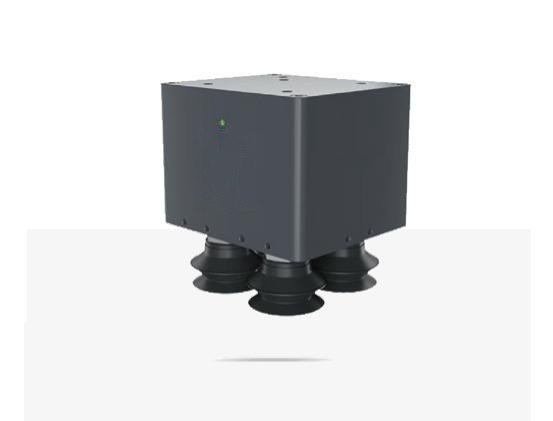

Vacuum up to 70% EVS08 electric vacuum actuator for precision manufacturing
The advantages and characteristics of EVS:
1. Compact structure and light weight: Absorbing loads of the same weight, EVS is 30% smaller than traditional pneumatic dimensions. It can be connected to the end connector of the robotic arm to achieve load absorption, especially suitable for scenarios such as stacking and handling;
2. Rich end configuration: Various types of suction cups, airbags, and other components can be configured to achieve the grasping of different objects, including square, spherical, and irregular components;
3. Dual channel independent control: Easily control the left and right sides of the vacuum actuator, with both sides independent of each other, further improving the efficiency of the production line. Realize simultaneous absorption and placement, greatly facilitating the handling and sorting of objects, saving space and time;
4. Adjustable suction: The vacuum degree can be adjusted according to the characteristics of the absorbed product, and real-time vacuum compensation can be achieved;
5. Status feedback: Equipped with a vacuum feedback sensor, it can detect the adsorption status of objects in real-time, provide feedback and alarm;
6. Power outage protection: After power outage, it can achieve adsorption, power outage, and self-locking to protect the adsorbed object;
7. Strong adaptability: supports 24V I/O and MODBUS RTU (RS485) communication protocol;
8. Easy to install and debug: The communication protocol is simple and readable, greatly reducing the difficulty of debugging. Additionally, an upper computer debugging software can be included for offline setting, editing, and setting of functional parameters.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
EVS08-0L#-C1024-P54-A
|
| Vacuum degree | 10% -70% |
| Maximum flow | 10 L/min |
| Body weight | 1.4 Kg |
| Maximum recommended load | 8 Kg |
| Fastest adsorption time | 0.4 s |
| Fastest release time | 0.2 s |
| Protection grade | IP54 |
| Power Down Hold | Not Supported |
| Usage environment | 0-40 ℃, below 85% RH |
| Operating noise |
<70dB
|
| Rated voltage |
DC 24±10% V
|
| Rated current |
0.5 A
|
| Peak current |
3.8 A
|
| Complies with international standards |
CE,RoHS
|
| Communication protocol |
Modbus RTU(RS485),Digital I/O
|
Product parameters table
