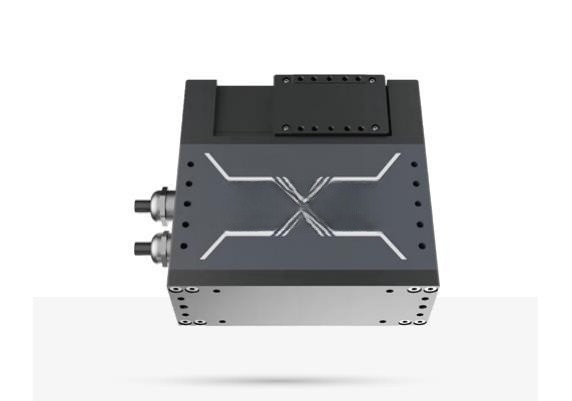

Lithium battery industry standardized lithium battery electric parallel gripper load 10kg
Product advantages
The electric gripper is driven by a stepper motor with an encoder and a single axis robot with grinding ball screws, achieving the advantages of high speed, high precision, high rigidity, and small volume. The clamping position, force, speed, and acceleration/deceleration can be set.
Long stroke, precise position control, suitable for objects of different sizes. The finger has a large opening and closing stroke, and the accuracy of grasping and repeated positioning is higher than 0.02mm. An electric gripper can meet the requirements of grasping objects of different sizes and scenes.
Accurately adjust the gripping force to adapt to objects of different hardness. The gripping force exceeds 100N and can be continuously adjusted between minimum force and gripping force. The grip can be rigid or flexible. The two fingered claws can easily grasp soft and fragile objects such as paper cups and eggs with a small gripping force of up to 5N through force feedback.
Adaptive grasping, adapting to objects of different shapes. According to the shape of the object, the electric gripper can automatically switch between parallel and envelope gripping modes to adapt to more gripping scenarios.
Integrated design, highly integrated. The electric gripper integrates a motor, reducer, linkage mechanism, and servo drive. The control system is integrated within the gripper, without the need for external connections. It has a compact structure, small size, and high protection level.
Mechanical self-locking. The electric gripper can still maintain stable grasping during power outage, with low power consumption, improving safety and stability. The product has a long service life and good stability, meeting the requirements of industrial applications.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code |
LEPG70-500-0L5000-C5024-P43-A
|
| Adjustable stroke | 0-70 mm |
| Single finger clamping force | 40-500 N |
| Opening/closing time | 0.9s |
| Position repetition accuracy | ± 0.02 mm |
| *Maximum recommended load | 10 kg |
| Collision buffering | Optional |
| Collision detection | Supports X/Y/Z direction detection |
| Operating environment | 5-40 ℃, below 85% RH |
| Operating noise | <60 dB |
| Body weight | 3 kg |
| IP level | IP43 |
| Rated voltage | DC 24 ± 10% V |
| Maximum current | 2 A |
| Rated current | 0.6 A |
| Communication protocol | Modbus RTU (RS 485), Digital I/O optional |
| Complies with international standards | CE and RoHS |
| Vertical allowable static load Fz | 1000 N |

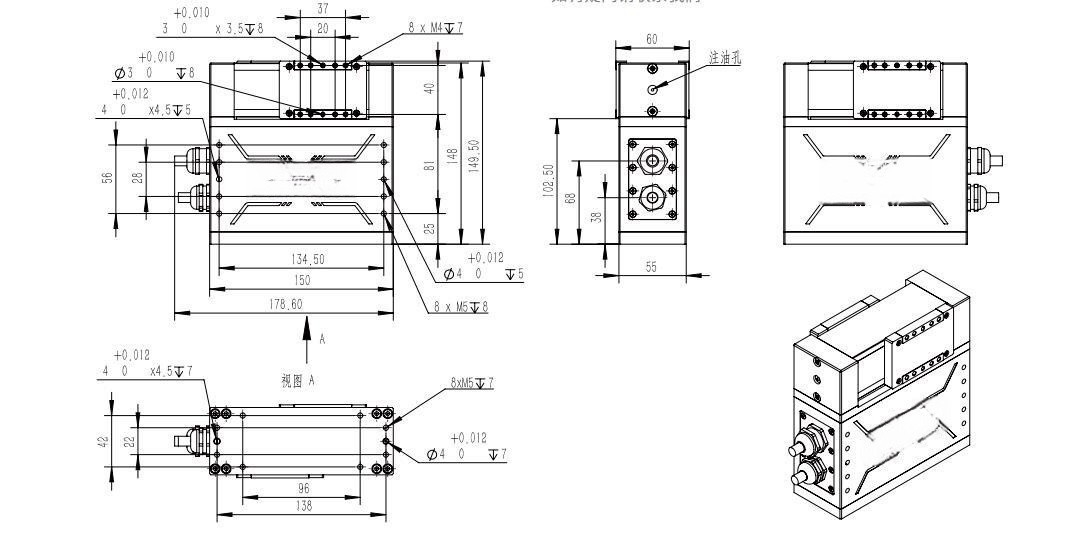

Product parameters table
