Place of Origin:
china
Brand Name:
youngyou
Certification:
CE
Model Number:
YY
Contact Us

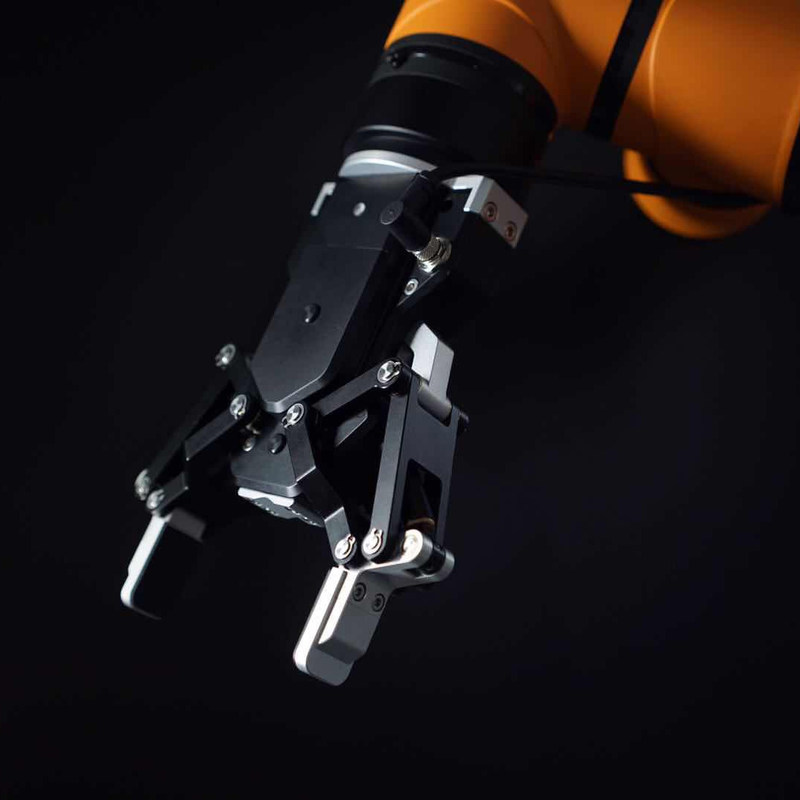

Robotic Arm Tool, Robotic Arm Gripper, or Robotic Clamping Device, is a powerful and reliable device for automatized clamping and gripping operations. It has a stroke of 95 mm, and is powered by 200w, making it an efficient and effective tool for industrial automation. It can open and close in 0.7 seconds, and offers a gripping force of 45-160 N. In addition, its noise emission is below 50 DB, making it suitable for use in environments where noise needs to be kept to a minimum.
| Parameters | Value |
|---|---|
| Power | 200w |
| Nominal voltage | 24V DC ±10% |
| Gripping force | 45~160 N |
| Peak current | 1.5 A |
| Noise emission | < 50 DB |
| Opening/closing time | 0.7 S/0.7 S |
| Position repeatability | ± 0.03 Mm |
| Nominal current | 0.8 A |
| Stroke | 95 Mm |
| Weight | 1KG |
| Robotics Tooling System | Robot Hand Manipulator, Robotic Arm Tooling |
Robotic Arm Gripper, with brand name youngyou and model YY, is a highly precise industrial robotic end effector manufactured in China, certified with CE. It has a peak current of 1.5A, a position repeatability of ± 0.03 Mm, a power of 200W and a noise emission of <50 DB. With a minimum order quantity of 1, the robotic arm seizer has an opening/closing time of 0.7 S/0.7 S and can be delivered within 6-8 weeks in a wooden case. It is a perfect solution for robotics manipulator and industrial automation.
Robotic Arm Gripper is a reliable and efficient product designed to help you get the most out of your robotic arm. Our dedicated team of technicians are ready to provide you with the technical support and services you need to make the most of your robotic arm gripper.
We provide a comprehensive range of services, including:
We are committed to providing our customers with the highest quality of service and strive to ensure that your robotic arm gripper is operating optimally.
If you need assistance with your Robotic Arm Gripper, please don't hesitate to contact us at any time.
Robotic Arm Gripper is shipped in a heavy-duty, high-quality cardboard box that is designed to protect the product from damage during transportation. The box is padded with foam to provide additional cushioning. The package includes the robot arm gripper, instruction manual, and all necessary mounting hardware.
The box is clearly labeled with the product name, so it can easily be identified as a Robotic Arm Gripper. The box is designed to withstand rough handling and weather, so it can be shipped safely and securely.
Robotic Arm Gripper can be shipped via ground, air, or sea. The customer can choose the method of shipping that best suits their needs. The customer can also select the type of insurance they would like to purchase for the shipment.
Q1: What is the brand name of the Robotic Arm Gripper?
A1: The brand name of the Robotic Arm Gripper is youngyou.
Q2: What is the model number of the Robotic Arm Gripper?
A2: The model number of the Robotic Arm Gripper is YY.
Q3: Where is the Robotic Arm Gripper manufactured?
A3: The Robotic Arm Gripper is manufactured in China.
Q4: Is the Robotic Arm Gripper certified?
A4: Yes, the Robotic Arm Gripper is certified with CE.
Q5: What is the minimum order quantity of the Robotic Arm Gripper?
A5: The minimum order quantity of the Robotic Arm Gripper is 1.
