Place of Origin:
china
Brand Name:
youngyou
Certification:
CE
Model Number:
JQ3-5
Contact Us

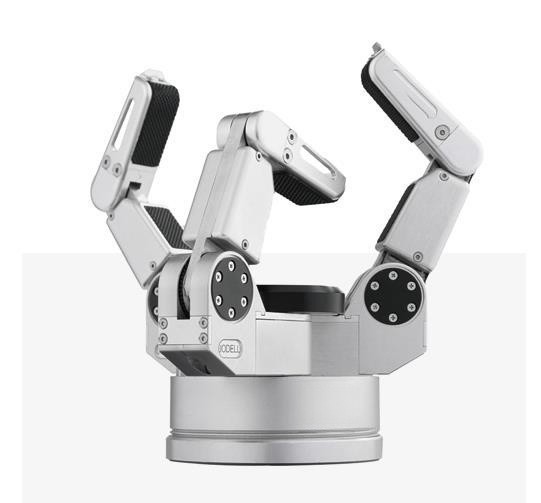

Introducing the Robotic End Effector - the Robotic Hand Gripper, an advanced robot hand manipulator that provides an innovative solution for your robotic needs. With its three-finger structure, this Gripper is capable of applying a maximum recommended load of 5kg with a dead-weight of just 0.98kg. It is driven by a Hefu motor drive, with a maximum current of 3A, making it ideal for a wide range of applications. It's the perfect tool for your robotic arm to complete tasks with greater precision and accuracy.
| Parameter | Value |
|---|---|
| Robotic End Effector | Robotic Arm Gripper |
| Maximum Recommended Load | 5kg |
| On/Off Time | Not More Than 1 Second |
| Communication Protocol | Modbus RTU(RS485) |
| Degree of Freedom | 7 |
| Working Voltage | DC24V±10% |
| Finger Structure | Three Fingers |
| Maximum Current | 3A |
| Power | 60W |
| Dead-weight | 0.98kg |
| Clamping Force | 5-20N |
Robotic arm gripper, model JQ3-5, made by YoungYou, is a revolutionary robotic arm tool that is ideal for many applications. Its China-made product with CE certification is available in minimum order of 1. It is powered by a DC24V±10% voltage with a maximum recommended load of 5kg. It offers a clamping force of 5-20N with three grab methods: pinching, gripping, and enveloping grip. It also supports Modbus RTU (RS485) communication protocol. It can be delivered within 6-8 weeks and comes with a wooden case packaging. The price of this model is available on counselling.
Brand Name: Youngyou
Model Number: JQ3-5
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: counselling
Packaging Details: wooden case
Delivery Time: 6-8 weeks
Driving Method: Hefu Motor Drive

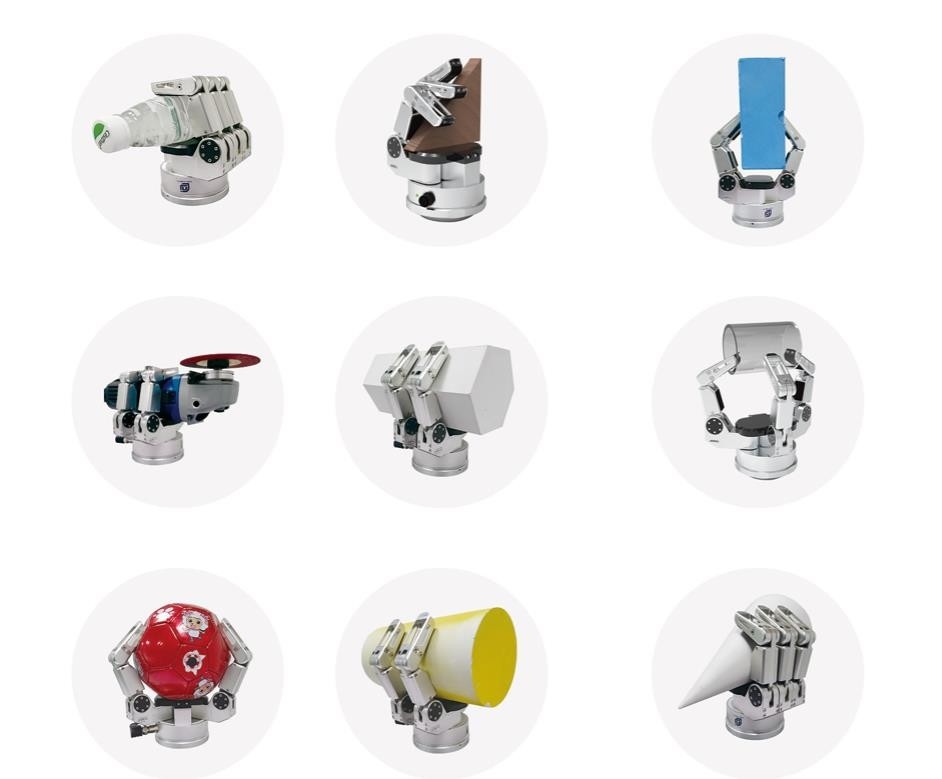

Grab Method: Pinching, Gripping, Enveloping Grip
Finger Structure: Three Fingers
Maximum Current: 3A
Dead-weight: 0.98kg
Robotics Arm Gripper is a Robotic End Effector designed for Robotics Manipulators to assist in gripping and handling tasks. This device is made with high-quality materials, and with Youngyou's strict quality control, you can be sure of a reliable and durable product. It features Hefu Motor Drive, Pinching, Gripping, and Enveloping Grip methods, Three Fingers structure, Maximum Current of 3A, and Dead-weight of 0.98kg. To ensure quality, this product is CE certified and comes with a minimum order quantity of 1. Delivery time is 6-8 weeks and it is packaged in a wooden case.
Our Robotic Arm Gripper is designed to provide you with efficient, reliable, and easy to use automation for your industrial or commercial purpose. With our technical support and services, you can get the most out of your Robotic Arm Gripper.
Robotic Arm Gripper will be packaged and shipped in a reinforced cardboard box with custom foam inserts to protect the product during transportation. All boxes will be labelled with the product name and a unique tracking number.
