Place of Origin:
china
Brand Name:
youngyou
Certification:
CE
Model Number:
EW-02-L#T-#-B
Contact Us
video

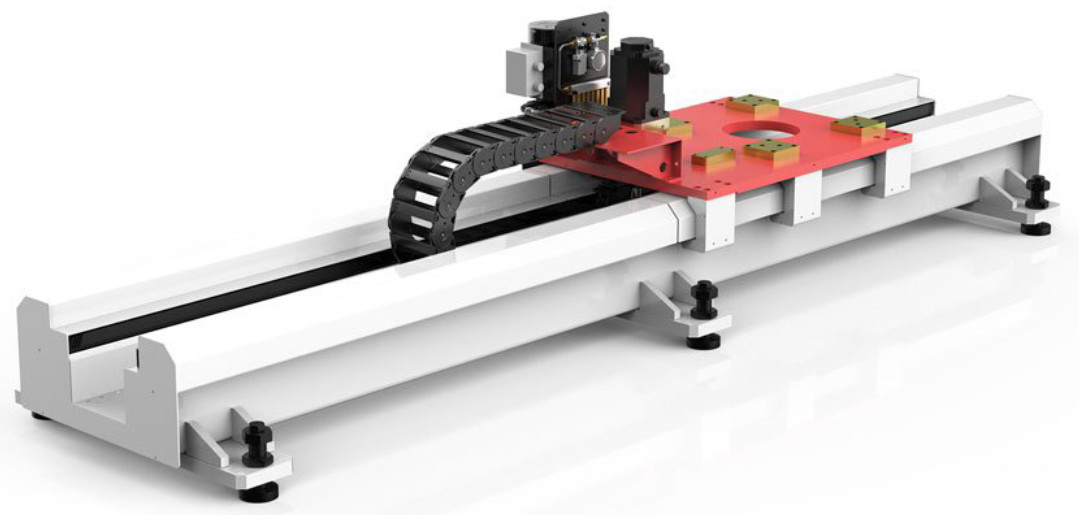

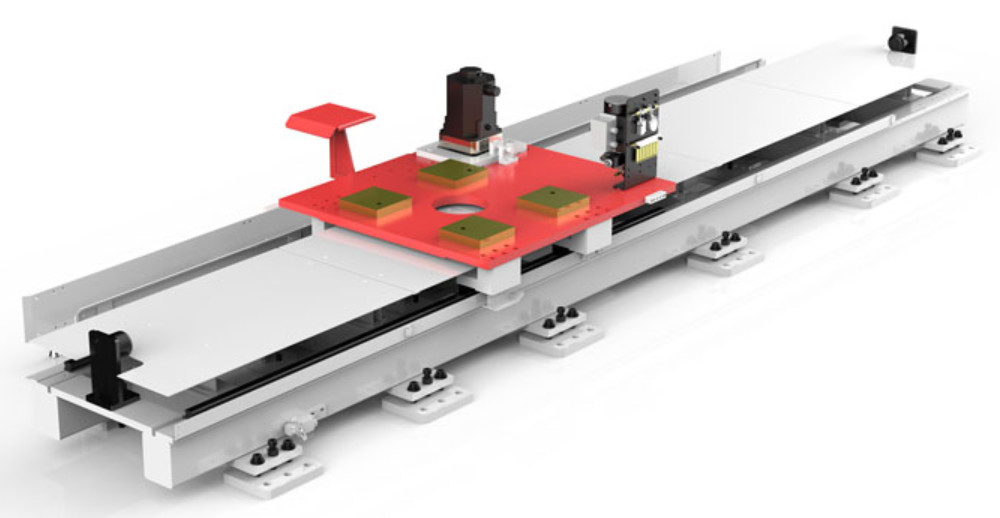

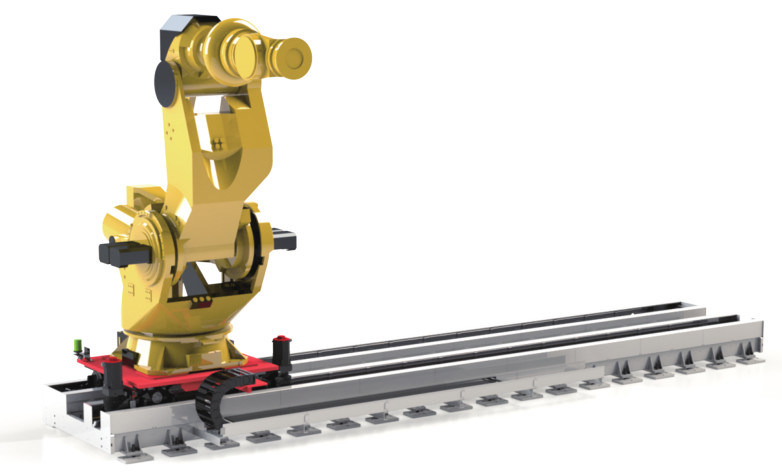

Robot Linear Rail is an ideal solution for providing precise linear guidance for robots. It is designed to provide high accuracy and repeatability, and is suitable for a wide range of applications. It features an installation method of ground installation (using chemical bolts), a driving method of AC servo motor drive and an effective stroke of 1-100m (1m interval, customizable for special and ultra-long travel). This product can handle a maximum load of up to 300kg and support up to 3 robot installations (customizable if more robots need to be installed). With its robust construction and reliable performance, Robot Linear Rail is the perfect solution for your robot linear guidance needs.
| Equipment load | 300kg |
|---|---|
| Installation method | Ground Installation (using Chemical Bolts) |
| Running speed | 1 - 3m/s |
| Acceleration | 1 - 3m/s |
| Driving method | AC Servo Motor Drive |
| Number of robot installations | 1-3 Units (customizable If More Robots Need To Be Installed) |
| Effective stroke | 1-100 M (1m Interval, Customizable For Special And Ultra Long Travel) |
| Repeatability | ±0.02 Mm |
| Installation conditions | Environmental temperature: 0-45 degrees Celsius Environmental humidity: usually at 759RH or below (there should be no condensation), short-term at 95% RH or below (within 1 month) Vibration value: 0.5G or less |
Youngyou's Robot Linear Guide Rail (Model Number: EW-02-L#T-#-B) is the perfect motion control solution for various industrial applications. With its CE certification and Minimum Order Quantity of 1, Youngyou provides a cost-effective solution to meet your needs. Its Wooden Case/Carton packaging ensures secure and safe delivery in 6-8weeks. And the product offers a wide range of features, including Acceleration ranging from 1 to 3m/s, AC Servo Motor Drive, Effective stroke ranging from 1 to 100 M (1m Interval, Customizable For Special And Ultra Long Travel), Running Speed from 1 to 3m/s, and Repeatability up to ±0.02 Mm. All of these features make Youngyou's Robot Linear Guide Rail the perfect choice for your motion control needs.
Youngyou's Robot Linear Guide is the perfect solution for robotics applications. This product is certified with CE standards and has a minimum order quantity of 1. Its repeatability is ±0.02 mm and acceleration is 1 - 3m/s. The equipment load is 300kg and the installation method is ground installation (using chemical bolts). We provide customized service for your robot linear rail needs and the delivery time can be 6-8 weeks.
Robot Linear Rail offers a comprehensive technical support and service package to ensure your linear rail is always running smoothly and efficiently. Our support team is on call 24/7 to offer assistance with installation, maintenance, troubleshooting, and more.
We offer a variety of support options to meet your needs, including:
Our technical support team is highly trained and experienced in the field, so you can trust that your linear rail is in the best of hands.
Robot linear rails are packaged in heavy duty cardboard boxes designed to keep the contents safe during transport. Each box contains the linear rail, mounting hardware, and instructions.
The linear rails are shipped using a reliable and reputable courier service. All packages are tracked to ensure they reach their destination safely and on time.
Any damaged or defective goods will be replaced or repaired at no extra cost to the customer.
