Place of Origin:
china
Brand Name:
youngyou
Certification:
CE
Model Number:
EPG26-006
Contact Us

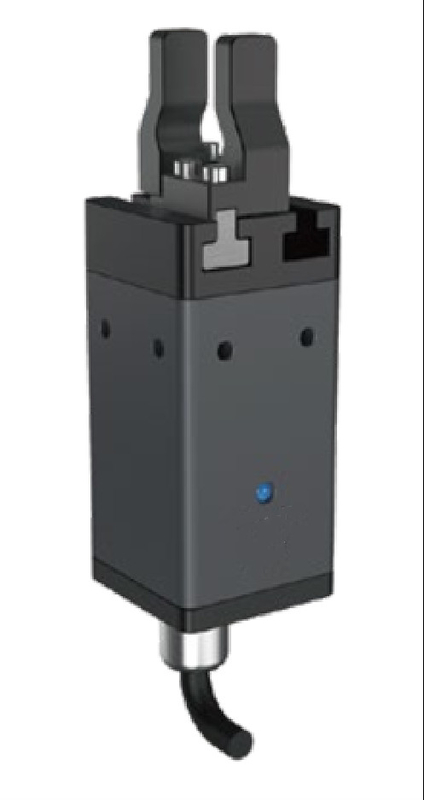

Robotic Arm Gripper is a robotic clamping device that provides robotic tooling systems with a robot hand manipulator that offers fingertip control. It provides a single finger clamping force ranging from 1-6N and a maximum recommended load of 0.1 Kg. Its adjustable stroke allows users to adjust it from 0-26mm and the opening/closing time is 0.25s. The usage environment is suitable for temperatures ranging from 5-40°C and below 85% RH. This device is perfect for robotic systems that need precise control and quick movement.
| Parameter | Value |
|---|---|
| IP level | IP40 |
| Adjustable stroke | 0-26mm |
| Usage environment | 5-40 ° C, Below 85% RH |
| Opening/closing time | 0.25s |
| Maximum recommended load | 0.1 Kg |
| Running noise | <40dB |
| Single finger clamping force | 1-6N |
| Position repetition accuracy | ±0.02mm |
Youngyou's Robotic Arm Gripper, model EPG26-006, is a reliable robotic end effector designed to provide efficient and precise robot hand manipulation. With its adjustable stroke of 0-26mm and position repetition accuracy of ±0.02mm, this robotic hand gripper is capable of meeting the highest standards of industrial automation. The maximum recommended load of this Robotic Arm Gripper is 0.1Kg and its single finger clamping force ranges from 1-6N, ensuring that the robotic arm can perform a wide range of gripping tasks. This product is certified with CE and comes with a minimum order quantity of 1. The delivery time is 6-8 weeks and the packaging is a wooden case. The usage environment for this Robotic Arm Gripper is 5-40°C, below 85% RH. By using this Robotic Arm Gripper, you can ensure that your robotic system performs at its peak efficiency.
This Robotic Arm Gripper is made for robotics gripping applications. Made by Youngyou, model EPG26-006, this robotic hand gripper is CE certified and has a minimum order quantity of 1. Price is available through counselling. It comes in a wooden case for delivery and has an IP40 level. Its position repetition accuracy is ±0.02mm and it has an adjustable stroke of 0-26mm. The opening/closing time is 0.25s, making it ideal for robotics gripping applications. It can be used in environments ranging from 5-40°C and below 85% RH.
We provide technical support and service for our Robotic Arm Gripper products. Our support includes:
For any inquiries regarding our Robotic Arm Gripper products, please contact our support team by email at support@example.com.
Robotic Arm Gripper should always be packaged and shipped in a secure, tightly sealed box. The box should be large enough to hold the Gripper and any associated accessories, and should be strong enough to withstand normal shipping conditions. The box should also be marked with the appropriate product information and a warning about the potential hazards of the product.
When shipping the Robotic Arm Gripper, extra care should be taken to ensure that the product is not damaged in transit. The box should be filled with packing material such as bubble wrap or foam to cushion the product and reduce the risk of it being damaged. The package should be clearly labeled with the appropriate shipping information, including the recipient's name and address, and should be shipped via a reputable courier service.
